CMPA2560025D - Power Amplifier

Wolfspeed

📥 Download Datasheet

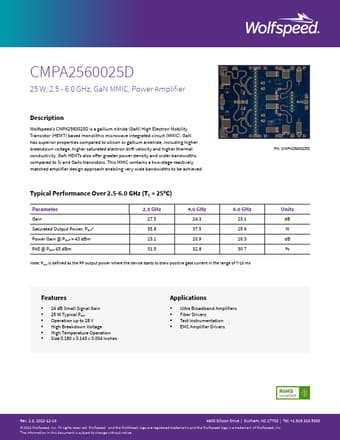

CMPA2560025D Datasheet Preview — Preview of CMPA2560025D PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CMPA2560025D
Manufacturer	Wolfspeed
File Size	1.31 MB
Description	Power Amplifier
Datasheet	CMPA2560025D-Wolfspeed.pdf

CMPA2560025D Product details

Description

Wolfspeed’s CMPA2560025D is a gallium nitride (GaN) High Electron Mobility Transistor (HEMT) based monolithic microwave integrated circuit (MMIC).

Features

24 dB Small Signal Gain.
25 W Typical PSAT.
Operation up to 28 V.
High Breakdown Voltage.
High Temperature Operation.
Size 0.180 x 0.145 x 0.004 inches.
