CMPA0060025F - GaN MMIC Power Amplifier

Wolfspeed

The CMPA0060025F by Wolfspeed is a GaN MMIC Power Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

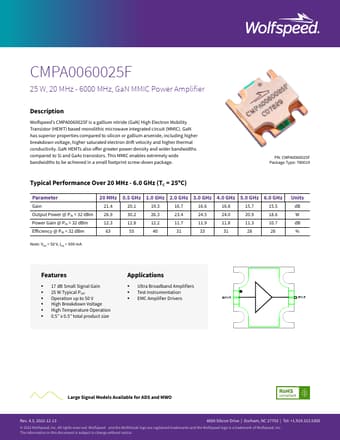

CMPA0060025F GaN MMIC Power Amplifier by Wolfspeed - Datasheet Preview — Official preview page of the CMPA0060025F GaN MMIC Power Amplifier datasheet (Wolfspeed).

Datasheet Details

Part number	CMPA0060025F
Manufacturer	Wolfspeed
File Size	4.06 MB
Description	GaN MMIC Power Amplifier
Datasheet	CMPA0060025F-Wolfspeed.pdf
Additional preview pages of the CMPA0060025F datasheet.

CMPA0060025F Product details

Description

Wolfspeed’s CMPA0060025F is a gallium nitride (GaN) High Electron Mobility Transistor (HEMT) based monolithic microwave integrated circuit (MMIC).

Features

17 dB Small Signal Gain.
25 W Typical PSAT.
Operation up to 50 V.
High Breakdown Voltage.
High Temperature Operation.
0.5” x 0.5” total product size.
