CMPA0530002S - GaN MMIC

Name: CMPA0530002S
SKU: CMPA0530002S-1511789

Wolfspeed

📥 Download Datasheet

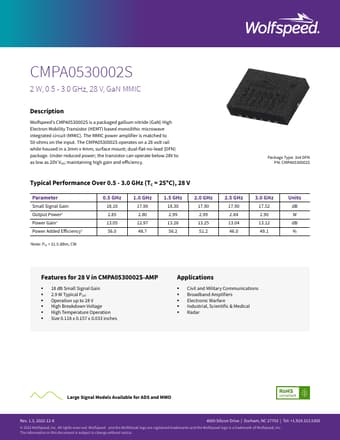

CMPA0530002S Datasheet Preview — Preview of CMPA0530002S PDF

Datasheet Details

Part number	CMPA0530002S
Manufacturer	Wolfspeed
File Size	2.09 MB
Description	GaN MMIC
Datasheet	CMPA0530002S-Wolfspeed.pdf

CMPA0530002S Product details

Description

Wolfspeed’s CMPA0530002S is a packaged gallium nitride (GaN) High Electron Mobility Transistor (HEMT) based monolithic microwave integrated circuit (MMIC).

Features

for 28 V in CMPA0530002S-AMP.
18 dB Small Signal Gain.
2.9 W Typical PSAT.
Operation up to 28 V.
High Breakdown Voltage.
High Temperature Operation.
Size 0.118 x 0.157 x 0.033 inches.
