WED3DG6466V-D2 - SDRAM UNBUFFERED

White Electronic Designs

📥 Download Datasheet

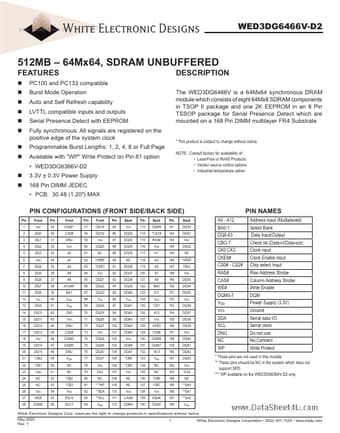

WED3DG6466V-D2 Datasheet Preview — Preview of WED3DG6466V-D2 PDF

Datasheet Details

Part number: WED3DG6466V-D2
Manufacturer: White Electronic Designs
File Size: 184.62 KB
Datasheet: WED3DG6466V-D2_WhiteElectronicDesigns.pdf
Description: SDRAM UNBUFFERED

WED3DG6466V-D2 Product details

Description

The WED3DG6466V is a 64Mx64 synchronous DRAM module which consists of eight 64Mx8 SDRAM components in TSOP II package and one 2K EEPROM in an 8 Pin TSSOP package for Serial Presence Detect which are mounted on a 168 Pin DIMM multilayer FR4 Substrate. This product is subject to change without notice.

Features

PC100 and PC133 compatible Burst Mode Operation Auto and Self Refresh capability LVTTL compatible inputs and outputs Serial Presence Detect with EEPROM Fully synchronous: All signals are registered on the positive edge of the system clock Programmable Burst Lengths: 1, 2, 4, 8 or Full Page Available with "WP" Write Protect on Pin 81 option.
WED3DG6366V-D2 3.3V ± 0.3V Power Supply 168 Pin DIMM JEDEC.
PCB: 30.48 (1.20") MAX NOTE: Consult factory for availability of:.
Lea.
