WED3DG644V-D1 - 32MB - 4Mx64 SDRAM

White Electronic Designs

📥 Download Datasheet

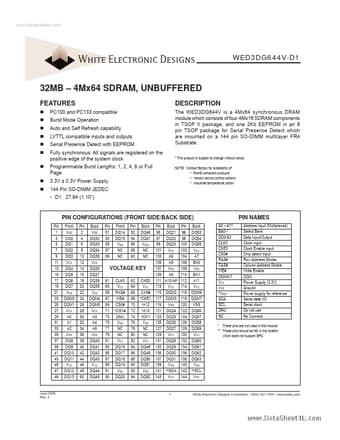

WED3DG644V-D1 Datasheet Preview — Preview of WED3DG644V-D1 PDF

Datasheet Details

Part number: WED3DG644V-D1
Manufacturer: White Electronic Designs
File Size: 222.06 KB
Datasheet: WED3DG644V-D1_WhiteElectronicDesigns.pdf
Description: 32MB - 4Mx64 SDRAM

WED3DG644V-D1 Product details

Description

The WED3DG644V is a 4Mx64 synchronous DRAM module which consists of four 4Mx16 SDRAM components in TSOP II package, and one 2Kb EEPROM in an 8 pin TSOP package for Serial Presence Detect which are mounted on a 144 pin SO-DIMM multilayer FR4 Substrate. This product is subject to change without notice. RoHS compliant products Vendor source control options Industrial temperature option PIN

Features

PC100 and PC133 compatible Burst Mode Operation Auto and Self Refresh capability LVTTL compatible inputs and outputs Serial Presence Detect with EEPROM Fully synchronous: All signals are registered on the positive edge of the system clock Programmable Burst Lengths: 1, 2, 4, 8 or Full Page 3.3V ± 0.3V Power Supply 144 Pin SO-DIMM JEDEC.
D1: 27.94 (1.10”) WED3DG644V-D1.
