WED3DG6466V-AD1 - 512MB - 64Mx64 SDRAM UNBUFFERED

White Electronic Designs

📥 Download Datasheet

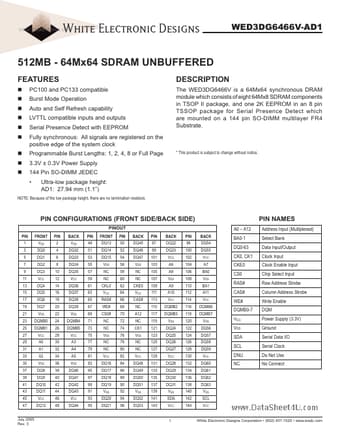

WED3DG6466V-AD1 Datasheet Preview — Preview of WED3DG6466V-AD1 PDF

Datasheet Details

Part number: WED3DG6466V-AD1
Manufacturer: White Electronic Designs
File Size: 172.28 KB
Datasheet: WED3DG6466V-AD1_WhiteElectronicDesigns.pdf
Description: 512MB - 64Mx64 SDRAM UNBUFFERED

WED3DG6466V-AD1 Product details

Description

The WED3DG6466V is a 64Mx64 synchronous DRAM module which consists of eight 64Mx8 SDRAM components in TSOP II package, and one 2K EEPROM in an 8 pin TSSOP package for Serial Presence Detect which are mounted on a 144 pin SO-DIMM multilayer FR4 Substrate.

Features

PC100 and PC133 compatible Burst Mode Operation Auto and Self Refresh capability LVTTL compatible inputs and outputs Serial Presence Detect with EEPROM Fully synchronous: All signals are registered on the positive edge of the system clock Programmable Burst Lengths: 1, 2, 4, 8 or Full Page 3.3V ± 0.3V Power Supply 144 Pin SO-DIMM JEDEC.
Ultra-low package height: AD1: 27.94 mm (1.1”).
This product is subject to change without notice.
