HMJ8 - High Dynamic Range FET Mixer

HMJ8 Description

www.DataSheet4U.com High Dynamic Range FET Mixer HMJ8 The Communications Edge ™ Product .
The HMJ8 is a high dynamic range, GaAs FET mixer.

HMJ8 Features

* +37 dBm IIP3
* No External Matching Elements

HMJ8 Applications

* include frequency up/down conversion, modulation and demodulation for receivers and transmitters used in communication systems. Functional Diagram 18 17 16 15 14 13 12 11 10 Required RF 2200-2300 MHz LO 2060-2160 MHz IF 50-150 MHz +18 dBm Drive Level +3V Bias (22 mA) Low Cost Surface Mount J-Lead

📥 Download Datasheet

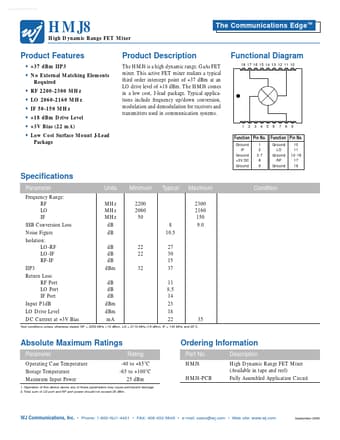

Preview of HMJ8 PDF
