HMJ7 Description

High Dynamic Range FET Mixer HMJ7 The Communications Edge ™ Product .
The HMJ7 is a high dynamic range, GaAs FET mixer.

HMJ7 Features

* +34 dBm IIP3
* 60 dBc Spurious Rejection in IF

HMJ7 Applications

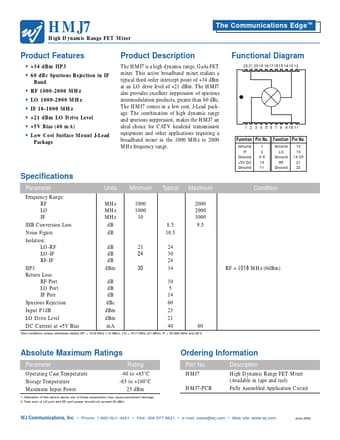

* requiring a broadband mixer in the 1000 MHz to 2000 MHz frequency range. Functional Diagram 22 21 2019 18171615 1413 12 Band RF 1000-2000 MHz LO 1000-2000 MHz IF 10-1000 MHz +21 dBm LO Drive Level +5V Bias (40 mA) Low Cost Surface Mount J-Lead Package 1 2 3 4 5 6 7 8 9 10 11 Function Pin No. Func
