HMJ2 - High Dynamic Range FET Mixer

HMJ2 Description

www.DataSheet4U.com High Dynamic Range FET Mixer HMJ2 The Communications Edge ™ Product .
The HMJ2 is a high dynamic range, GaAs FET mixer.

HMJ2 Features

* +37 dBm IIP3
* No External Matching Elements

HMJ2 Applications

* include frequency up/down conversion, modulation and demodulation for receivers and transmitters used in PCS systems. Functional Diagram 18 17 16 15 14 13 12 11 10 Required RF 1850-1990 MHz LO 1700-1940 MHz IF 50-150 MHz +17 dBm Drive Level +3V Bias (25 mA) Low Cost Surface Mount J-Lead Package 1

📥 Download Datasheet

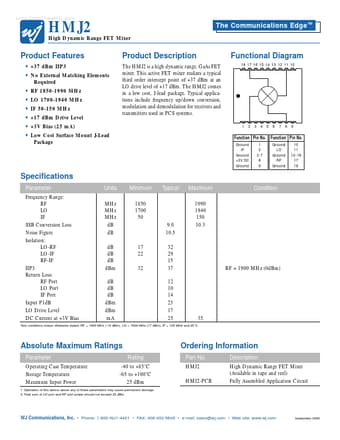

Preview of HMJ2 PDF
