HMJ1 - High Dynamic Range FET Mixer

HMJ1 Description

www.DataSheet4U.com High Dynamic Range FET Mixer HMJ1 The Communications Edge ™ Product Information Product .
The HMJ1 is a high dynamic range, GaAs FET mixer.

HMJ1 Features

* +39 dBm IIP3
* No External Matching Elements

HMJ1 Applications

* include frequency up/down conversion, modulation and demodulation for receivers and transmitters used in cellular communications systems. Functional Diagram Required RF 750-1000 MHz LO 680-980 MHz IF 20-100 MHz +17 dBm Drive Level +3V Bias (23 mA) Low-Cost Surface Mount J-Lead Package Specificati

📥 Download Datasheet

Preview of HMJ1 PDF

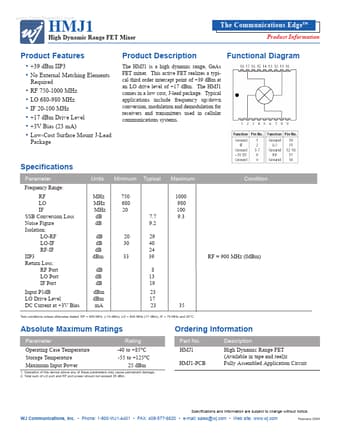

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HMJ1
Manufacturer
WJ Communication
File Size
247.61 KB
Datasheet
HMJ1_WJCommunication.pdf
Description
High Dynamic Range FET Mixer
