VP3481 - High-Efficiency Boost/SEPIC DC/DC Controller

Product Overview

Part number	VP3481
Manufacturer	Viva Electronics
File Size	1.05 MB
Description	High-Efficiency Boost/SEPIC DC/DC Controller
Datasheet	VP3481 Datasheet

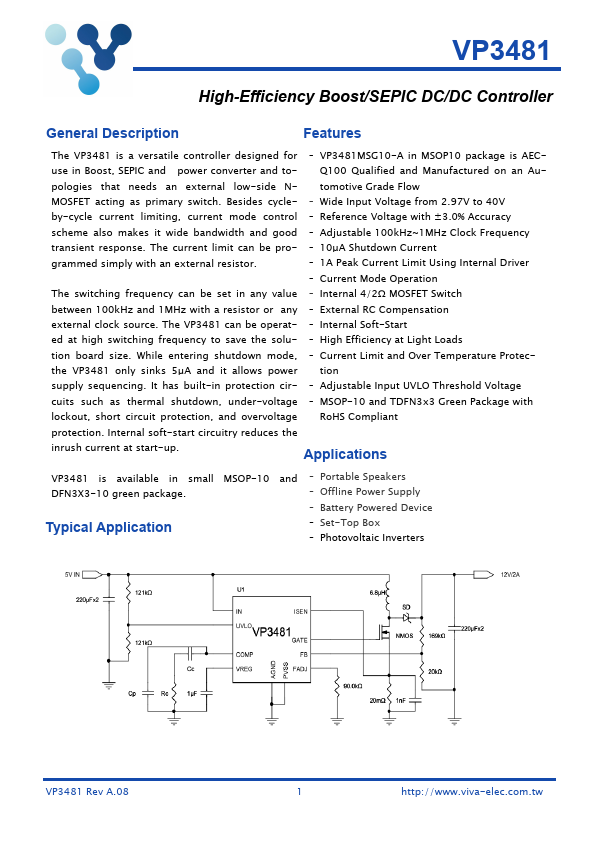

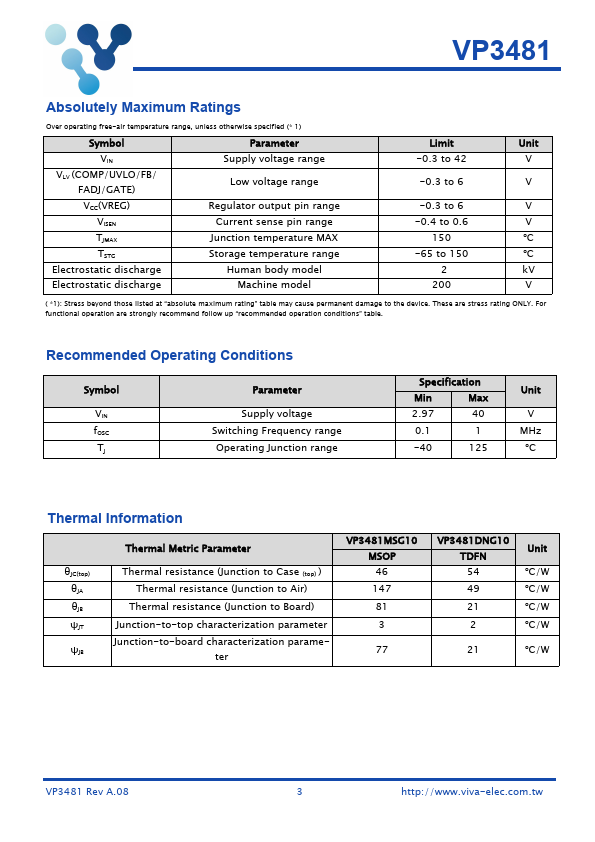

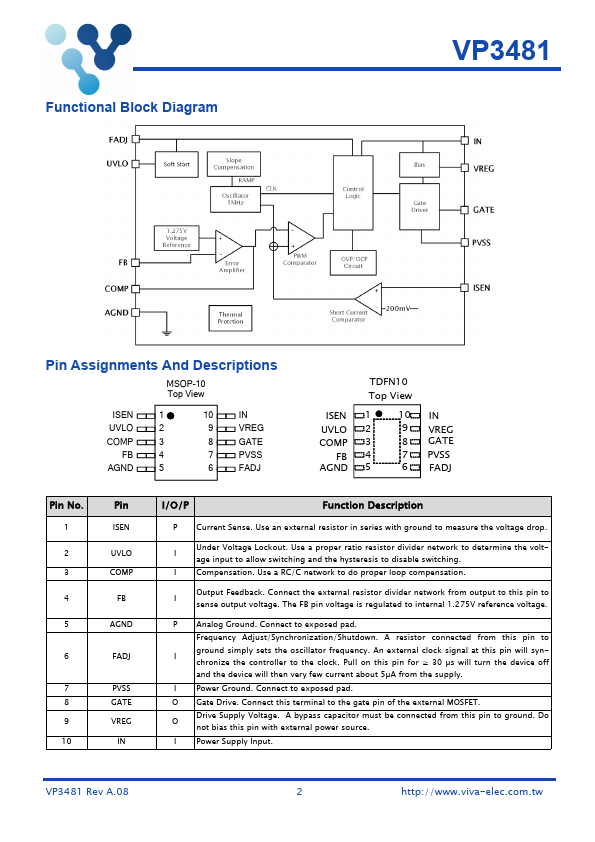

Additional preview pages of the VP3481 datasheet.

The VP3481 is a versatile controller designed for - VP3481MSG10-A in MSOP10 package is AEC- use in Boost, SEPIC and power converter and to- Q100 Qualified and Manufactured on an Au- pologies that needs an external low-side N- tomotive Grade Flow MOSFET acting as primary switch. Besides cycle- - Wide Input Voltage from 2.97V to 40V by-cycle current limiting, current mode control - Reference Voltage with ± 3.0% Accuracy scheme also makes it wide bandwidth and good - Adjustable 100kHz~1MHz Cl.
