DG613E - Quad SPST Switches

Product Overview

Vishay

📥 Download Datasheet

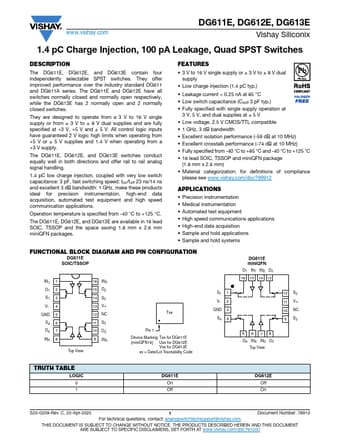

DG613E Quad SPST Switches by Vishay - Datasheet Preview — Datasheet preview – DG613E

Datasheet Details

Part number	DG613E
Manufacturer	Vishay
File Size	435.30 KB
Description	Quad SPST Switches
Datasheet	DG613E Datasheet
Note	This datasheet PDF includes multiple part numbers: DG613E, DG611E. Please refer to the document for exact specifications by model.
Additional preview pages of the DG613E datasheet.

Product details

Description

The DG611E, DG612E, and DG613E contain four independently selectable SPST switches.

Features

3 V to 16 V single supply or ± 3 V to ± 8 V dual supply.
Low charge injection (1.4 pC typ. ).
Leakage current < 0.25 nA at 85 °C.
Low switch capacitance (Csoff 3 pF typ. ).
Fully specified with single supply operation at 3 V, 5 V, and dual supplies at ± 5 V.
Low voltage, 2.5 V CMOS/TTL compatible.
1 GHz, 3 dB bandwidth.
Excellent isolation performance (-59 dB at 10 MHz).
Excellent crosstalk performance (-74 dB at 10.
