DG613A - Quad SPST Switches

Product Overview

Vishay

📥 Download Datasheet

DG613A Quad SPST Switches by Vishay - Datasheet Preview — Datasheet preview – DG613A

Datasheet Details

Part number	DG613A
Manufacturer	Vishay
File Size	319.63 KB
Description	Quad SPST Switches
Datasheet	DG613A Datasheet
Note	This datasheet PDF includes multiple part numbers: DG613A, DG611A. Please refer to the document for exact specifications by model.

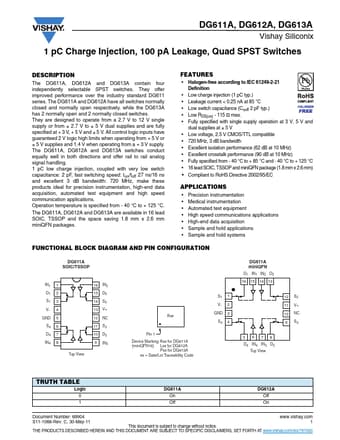

Additional preview pages of the DG613A datasheet.

Product details

Description

The DG611A, DG612A and DG613A contain four independently selectable SPST switches.

Features

Halogen-free according to IEC 61249-2-21 Definition.
Low charge injection (1 pC typ. ).
Leakage current < 0.25 nA at 85 °C.
Low switch capacitance (Csoff 2 pF typ. ).
Low RDS(on) - 115  max.
Fully specified with single supply operation at 3 V, 5 V and dual supplies at ± 5 V.
Low voltage, 2.5 V CMOS/TTL compatible.
720 MHz, 3 dB bandwidth.
Excellent isolation performance (62 dB at 10 MHz).
Excellent crossta.
