DG612A - Quad SPST Switches

Download the DG612A datasheet PDF (DG611A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for quad spst switches.

Description

The DG611A, DG612A and DG613A contain four independently selectable SPST switches.

They offer improved performance over the industry standard DG611 series.

Features

  • Halogen-free according to IEC 61249-2-21 Definition.
  • Low charge injection (1 pC typ. ).
  • Leakage current < 0.25 nA at 85 °C.
  • Low switch capacitance (Csoff 2 pF typ. ).
  • Low RDS(on) - 115  max.
  • Fully specified with single supply operation at 3 V, 5 V and dual supplies at ± 5 V.
  • Low voltage, 2.5 V CMOS/TTL compatible.
  • 720 MHz, 3 dB bandwidth.
  • Excellent isolation performance (62 dB at 10 MHz).
  • Excellent crossta.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DG611A-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DG612A
Manufacturer Vishay
File Size 319.63 KB
Description Quad SPST Switches
Datasheet download datasheet DG612A Datasheet

📁 Similar Datasheet

  • DG612 - High-Speed / Low-Glitch D/CMOS Analog Switches (Vishay Siliconix)
  • DG611 - High-Speed / Low-Glitch D/CMOS Analog Switches (Vishay Siliconix)
  • DG613 - High-Speed / Low-Glitch D/CMOS Analog Switches (Vishay Siliconix)
  • DG6045C - Ferrite Inductors (TOKO)
  • DG6050C - Ferrite Inductors (TOKO)
  • DG630 - N-CHANNEL ENHANCEMENT MODE MOSFET (DGME)
  • DG640 - N-CHANNEL ENHANCEMENT MODE MOSFET (DGME)
  • DG641 - Low On-Resistance Wideband/Video Switches (Vishay Siliconix)
  • DG642 - Low On-Resistance Wideband/Video Switches (Vishay Siliconix)
  • DG643 - Low On-Resistance Wideband/Video Switches (Vishay Siliconix)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

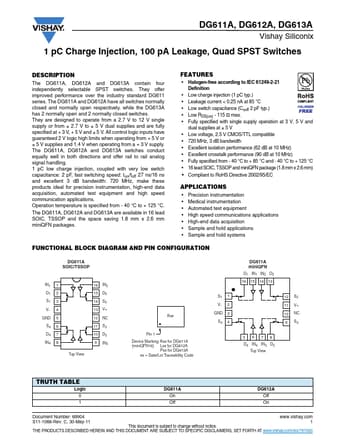

DG611A, DG612A, DG613A Vishay Siliconix 1 pC Charge Injection, 100 pA Leakage, Quad SPST Switches DESCRIPTION The DG611A, DG612A and DG613A contain four independently selectable SPST switches. They offer improved performance over the industry standard DG611 series. The DG611A and DG612A have all switches normally closed and normally open respectively, while the DG613A has 2 normally open and 2 normally closed switches. They are designed to operate from a 2.7 V to 12 V single supply or from ± 2.7 V to ± 5 V dual supplies and are fully specified at + 3 V, + 5 V and ± 5 V. All control logic inputs have guaranteed 2 V logic high limits when operating from + 5 V or ± 5 V supplies and 1.4 V when operating from a + 3 V supply.
