DG611A - Quad SPST Switches

Product Overview

Vishay

📥 Download Datasheet

DG611A Quad SPST Switches by Vishay - Datasheet Preview — Datasheet preview – DG611A

Datasheet Details

Part number	DG611A
Manufacturer	Vishay
File Size	319.63 KB
Description	Quad SPST Switches
Datasheet	DG611A Datasheet

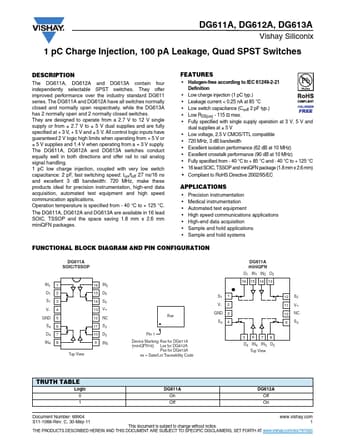

Additional preview pages of the DG611A datasheet.

Product details

Description

The DG611A, DG612A and DG613A contain four independently selectable SPST switches.

Features

Halogen-free according to IEC 61249-2-21 Definition.
Low charge injection (1 pC typ. ).
Leakage current < 0.25 nA at 85 °C.
Low switch capacitance (Csoff 2 pF typ. ).
Low RDS(on) - 115  max.
Fully specified with single supply operation at 3 V, 5 V and dual supplies at ± 5 V.
Low voltage, 2.5 V CMOS/TTL compatible.
720 MHz, 3 dB bandwidth.
Excellent isolation performance (62 dB at 10 MHz).
Excellent crossta.
