VLMA3100 - Low Current SMD LED PLCC-2

Name: VLMA3100
SKU: VLMA3100-635270

Vishay Siliconix

📥 Download Datasheet

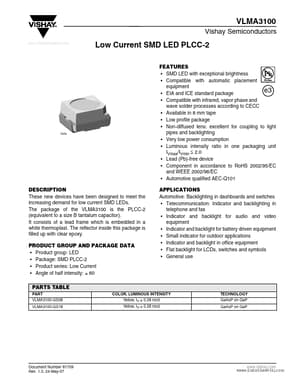

VLMA3100 Datasheet Preview — Preview of VLMA3100 PDF

Datasheet Details

Part number	VLMA3100
Manufacturer	Vishay Siliconix
File Size	232.72 KB
Description	Low Current SMD LED PLCC-2
Datasheet	VLMA3100_VishaySiliconix.pdf

VLMA3100 Product details

Description

These new devices have been designed to meet the increasing demand for low current SMD LEDs. Product group: LED Package: SMD PLCC-2 Product series: Low Current Angle of half intensity: ± 60 PARTS TABLE PART

Features

SMD LED with exceptional brightness.
Compatible with automatic placement equipment e3.
EIA and ICE standard package.
Compatible with infrared, vapor phase and wave solder processes according to CECC.
Available in 8 mm tape.
Low profile package.
Non-diffused lens: excellent for coupling to light pipes and backlighting.
Very low power consumption.
Luminous intensity ratio in one packaging unit IVmax/IVmin ≤ 2.0.
