VLMB2332T1U2-08 - Standard SMD MiniLED

Vishay

📥 Download Datasheet

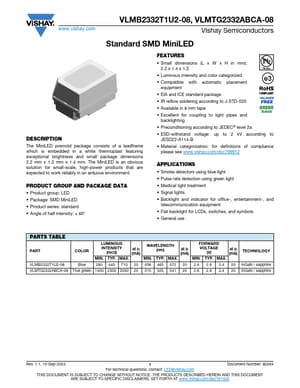

VLMB2332T1U2-08 Datasheet Preview — Preview of VLMB2332T1U2-08 PDF

Datasheet Details

Part number	VLMB2332T1U2-08
Manufacturer	Vishay
File Size	350.44 KB
Description	Standard SMD MiniLED
Datasheet	VLMB2332T1U2-08-Vishay.pdf

VLMB2332T1U2-08 Product details

Description

The MiniLED premold package consists of a leadframe which is embedded in a white thermoplast featuring exceptional brightness and small package dimensions 2.2 mm x 1.3 mm x 1.4 mm. Product group: LED Package: SMD MiniLED Product series: standard Angle of half intensity: ± 60°

Features

Small dimensions (L x W x H in mm): 2.2 x 1.4 x 1.3.
Luminous intensity and color categorized.
Compatible with automatic placement equipment.
EIA and ICE standard package.
IR reflow soldering according to J-STD-020.
Available in 8 mm tape.
Excellent for coupling to light pipes and backlighting.
Preconditioning according to JEDEC® level 2a.
ESD-withstand voltage: up to 2 kV according to JESD22-A114-B.
Mater.
