VLMB1310 - Highbright 0603 ChipLED

Download the VLMB1310 datasheet PDF (VLMS1300 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for highbright 0603 chipled.

Description

The new ChipLED series have been designed in the smallest SMD package.

smaller products of higher performance more design in flexibility enhanced applications The 0603 LED is an obvious solution for small scale, high b

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (VLMS1300_Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number VLMB1310
Manufacturer Vishay
File Size 257.87 KB
Description Highbright 0603 ChipLED
Datasheet download datasheet VLMB1310 Datasheet

📁 Similar Datasheet

  • VLMBG31 - Standard SMD LED PLCC-2 (Vishay Siliconix)
  • VLMA3100 - Low Current SMD LED PLCC-2 (Vishay Siliconix)
  • VLMC310 - Low Current SMD LED PLCC-2 (Vishay Siliconix)
  • VLMG310 - (VLMx310) Standard SMD LED PLCC-2 (Vishay Siliconix)
  • VLMG3100-GS08 - Standard SMD LED PLCC-2 (Vishay Siliconix)
  • VLMG3100-GS18 - Standard SMD LED PLCC-2 (Vishay Siliconix)
  • VLMG3102-GS08 - Standard SMD LED PLCC-2 (Vishay Siliconix)
  • VLMG3102-GS18 - Standard SMD LED PLCC-2 (Vishay Siliconix)
  • VLMG3105-GS08 - Standard SMD LED PLCC-2 (Vishay Siliconix)
  • VLMG3105-GS18 - Standard SMD LED PLCC-2 (Vishay Siliconix)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

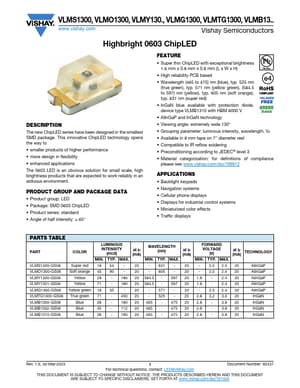

VLMS1300, VLMO1300, VLMY130., VLMG1300, VLMTG1300, VLMB13.. www.vishay.com Vishay Semiconductors Highbright 0603 ChipLED DESCRIPTION The new ChipLED series have been designed in the smallest SMD package. This innovative ChipLED technology opens the way to • smaller products of higher performance • more design in flexibility • enhanced applications The 0603 LED is an obvious solution for small scale, high brightness products that are expected to work reliably in an arduous environment. PRODUCT GROUP AND PACKAGE DATA • Product group: LED • Package: SMD 0603 ChipLED • Product series: standard • Angle of half intensity: ± 65° FEATURE • Super thin ChipLED with exceptional brightness 1.6 mm x 0.8 mm x 0.8 mm (L x W x H) • High reliability PCB based • Wavelength (465 to 475) nm (blue), typ.
