VLMBG31, VLMB31 - Standard SMD LED PLCC-2

Vishay Siliconix

📥 Download Datasheet

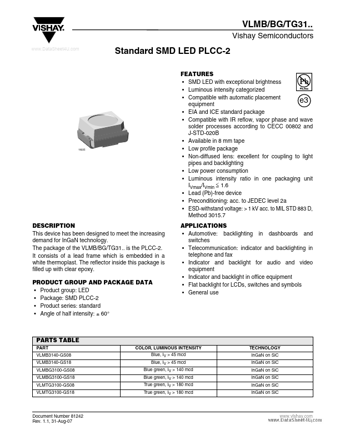

VLMBG31 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLMBG31, VLMB31. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	VLMBG31, VLMB31
Manufacturer	Vishay Siliconix
File Size	234.56 KB
Description	Standard SMD LED PLCC-2
Datasheet	VLMB31_VishaySiliconix.pdf
Note	This datasheet PDF includes multiple part numbers: VLMBG31, VLMB31. Please refer to the document for exact specifications by model.

VLMBG31 Product details

Description

This device has been designed to meet the increasing demand for InGaN technology. Product group: LED Package: SMD PLCC-2 Product series: standard Angle of half intensity: ± 60° PARTS TABLE PART VLMB3140-GS08 VLMB3140-GS18 VLMBG3100-GS08 VLMBG31

Features

SMD LED with exceptional brightness.
Luminous intensity categorized.
Compatible with automatic placement e3 equipment.
EIA and ICE standard package.
Compatible with IR reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020B.
Available in 8 mm tape.
Low profile package.
Non-diffused lens: excellent for coupling to light pipes and backlighting.
Low power consumption.
Luminous int.
