VLMB31J2L2-GS08 - Standard SMD LED PLCC-2

Vishay

📥 Download Datasheet

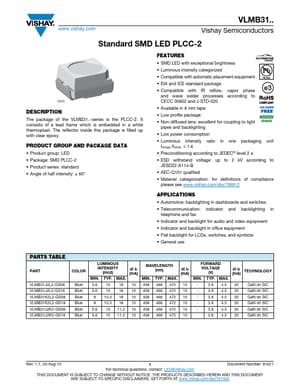

VLMB31J2L2-GS08 Datasheet Preview — Preview of VLMB31J2L2-GS08 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VLMB31J2L2-GS08
Manufacturer	Vishay
File Size	169.47 KB
Description	Standard SMD LED PLCC-2
Datasheet	VLMB31J2L2-GS08-Vishay.pdf

VLMB31J2L2-GS08 Product details

Description

The package of the VLMB31..-series is the PLCC-2. Product group: LED Package: SMD PLCC-2 Product series: standard Angle of half intensity: ± 60°

Features

SMD LED with exceptional brightness.
Luminous intensity categorized.
Compatible with automatic placement equipment.
EIA and ICE standard package.
Compatible with IR reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020.
Available in 8 mm tape.
Low profile package.
Non-diffused lens: excellent for coupling to light pipes and backlighting.
Low power consumption.
Lumino.
