VS3618AP - N-Channel Advanced Power MOSFET

VS3618AP Description

.

VS3618AP Features

* N-Channel，5V Logic Level Control
* Enhancement mode
* Very low on-resistance RDS(on) @ VGS=4.5 V
* Fast Switching
* 100% Avalanche test
* Pb-free lead plating; RoHS compliant VS3618AP 30V/54A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.

📥 Download Datasheet

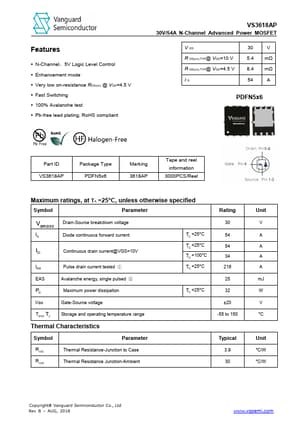

Preview of VS3618AP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3618AP
Manufacturer
Vanguard Semiconductor
File Size
1.03 MB
Datasheet
VS3618AP-VanguardSemiconductor.pdf
Description
N-Channel Advanced Power MOSFET
