VS3622AD N-Channel 30V MOSFET

VS3622AD Description

VS3622AD-VB VS3622AD-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 30 RDS(on) () 0.005 at VGS = 10 V 0.006 at .

VS3622AD Features

* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

VS3622AD Applications

* OR-ing
* Server
* DC/DC G GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 175 °C) TC = 70 °C TA = 25 °C ID

📥 Download Datasheet

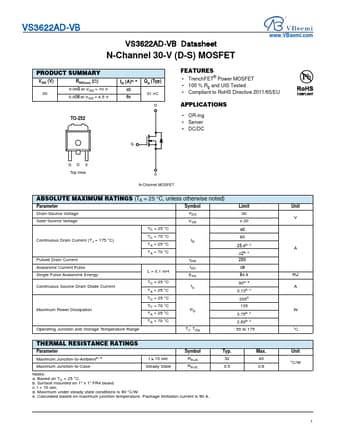

Preview of VS3622AD PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3622AD
Manufacturer
VBsemi
File Size
228.66 KB
Datasheet
VS3622AD-VBsemi.pdf
Description
N-Channel 30V MOSFET
