VS3647DB 30V Dual Asymmetric N-Channel Advanced Power MOSFET

VS3647DB Description

VS3647DB 30V Dual Asymmetric N-Channel Advanced Power MOSFET .

VS3647DB Features

* Dual Asymmetric N-Channel
* VitoMOS® Ⅱ Technology
* 100% Avalanche Tested,100% Rg Tested V DS R @ DS(on),TYP VGS=10 V R @ DS(on),TYP VGS=4.5V I D(Wire bond Limited) 30 30 V 8.2 4.9 mΩ 12 7.7 mΩ 24 36 A DFN3x3 Part ID VS3647DB Package Type DFN3x3 Marking 3647DB Packing 5

📥 Download Datasheet

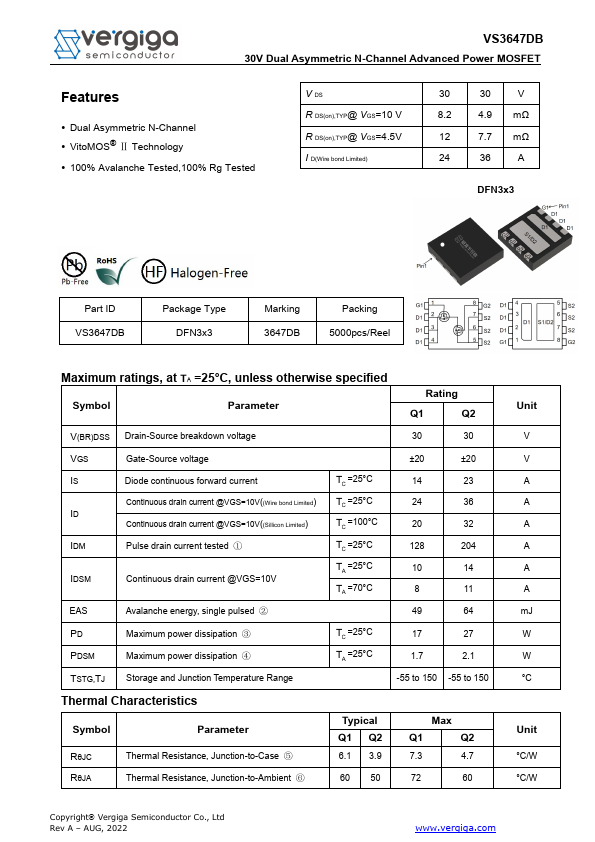

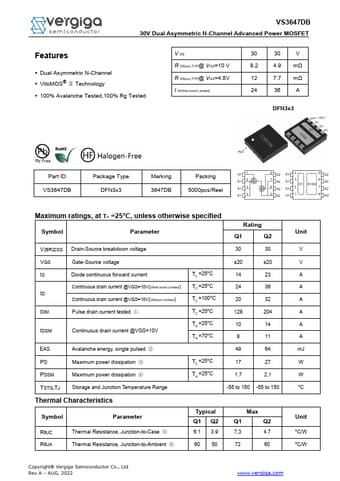

Preview of VS3647DB PDF

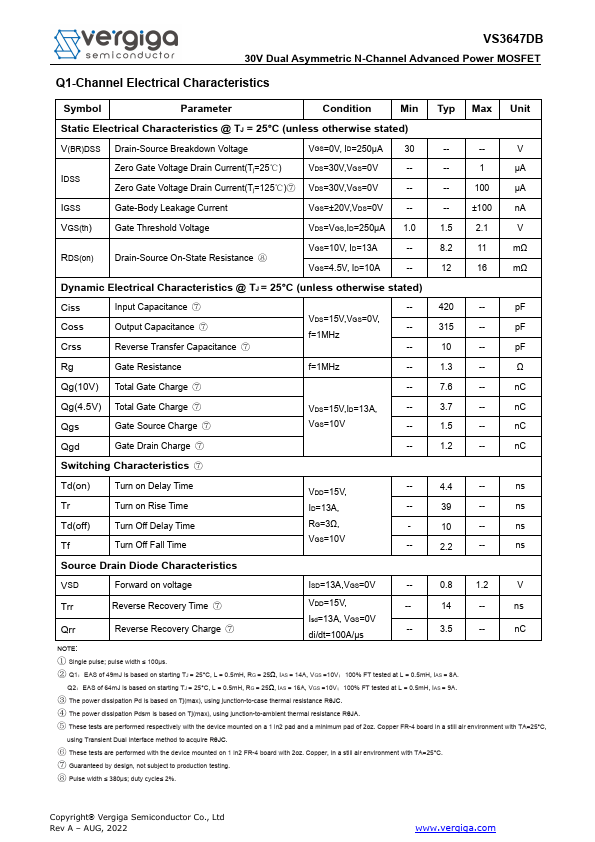

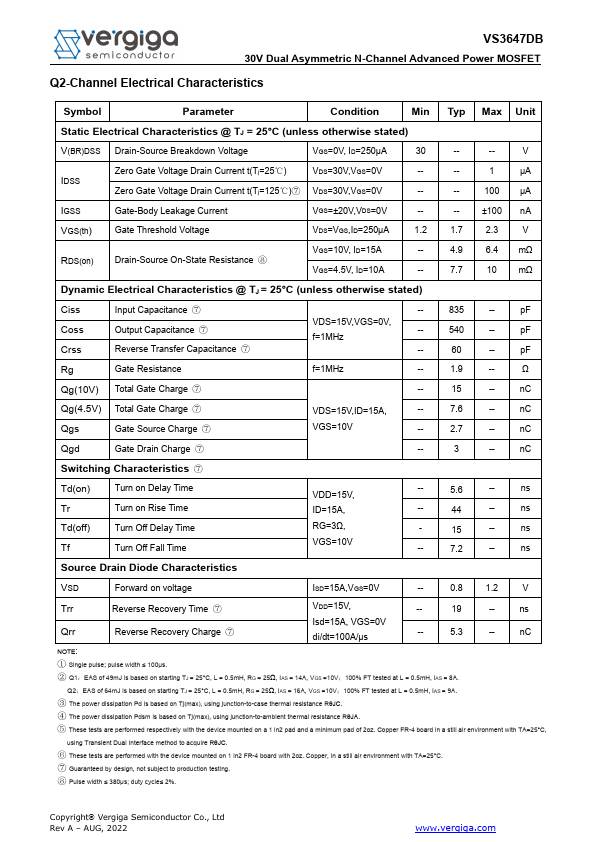

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3647DB
Manufacturer
Vergiga
File Size
1.06 MB
Datasheet
VS3647DB-Vergiga.pdf
Description
30V Dual Asymmetric N-Channel Advanced Power MOSFET
