VS3618AH - N-Channel Advanced Power MOSFET

VS3618AH Description

.

VS3618AH Features

* N-Channel
* Enhancement mode
* Low on-resistance RDS(on) @ VGS=4.5 V
* Fast Switching
* High Effective
* Pb-free lead plating; RoHS compliant; Hg-Free VS3618AH 30V/8A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 30 V 9.5 mΩ 13 mΩ

📥 Download Datasheet

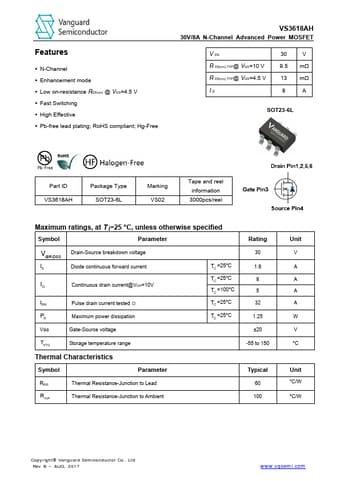

Preview of VS3618AH PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3618AH
Manufacturer
Vanguard Semiconductor
File Size
349.82 KB
Datasheet
VS3618AH-VanguardSemiconductor.pdf
Description
N-Channel Advanced Power MOSFET
