NCE2025S - N-Channel MOSFET

Features

  • Halogen-free According to IEC 61249-2-21 Definition.
  • TrenchFET® Power MOSFET.
  • 100 % Rg and UIS Tested.
  • Compliant to RoHS Directive 2002/95/EC.

📥 Download Datasheet

Datasheet Details

Part number NCE2025S
Manufacturer VBsemi
File Size 256.82 KB
Description N-Channel MOSFET
Datasheet download datasheet NCE2025S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NCE2025S N-Channel Enhancement Mode Power MOSFET NCE Power Semiconductor
NCE2025I N-Channel Enhancement Mode Power MOSFET NCE Power Semiconductor
NCE2003 N & P-Channel Enhancement Mode Power MOSFET NCE Power Semiconductor
NCE2004NE N-Channel Enhancement Mode Power MOSFET NCE Power Semiconductor
NCE2006NE N-Channel Enhancement Mode Power MOSFET NCE Power Semiconductor

Other Datasheets by VBsemi

Part Number Description
NCE2025I N-Channel MOSFET
NCE20H11 N-Channel 20V MOSFET
NCE2302D N-Channel 20V MOSFET
NCE0103 N-Channel 100V MOSFET
NCE0157A2 N-Channel Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

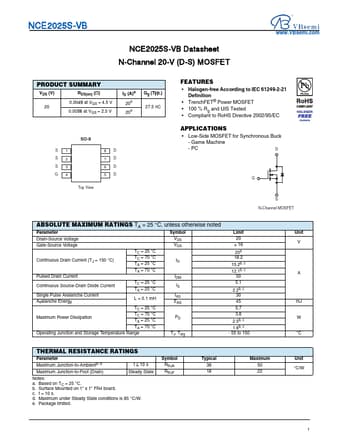

NCE2025S-VB NCE2025S-VB Datasheet N-Channel 20-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.0049 at VGS = 4.5 V 20 0.0056 at VGS = 2.5 V ID (A)a 20e 20e Qg (Typ.) 27.5 nC S1 S2 S3 G4 SO-8 Top View 8D 7D 6D 5D FEATURES • Halogen-free According to IEC 61249-2-21 Definition • TrenchFET® Power MOSFET • 100 % Rg and UIS Tested • Compliant to RoHS Directive 2002/95/EC APPLICATIONS • Low-Side MOSFET for Synchronous Buck - Game Machine - PC D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 20 V VGS ± 16 TC = 25 °C 20e Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID 18.2 15.2b, c Pulsed Drain Current TA = 70 °C 12.
