HM2302 N-Channel MOSFET

HM2302 Description

HM2302-VB HM2302-VB Datasheet N-Channel 20 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.028 at VGS = 4.5 V 20 0.042 at .

HM2302 Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested

HM2302 Applications

* DC/DC Converters
* Load Switch for Portable Applications ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID TA = 70 °C

📥 Download Datasheet

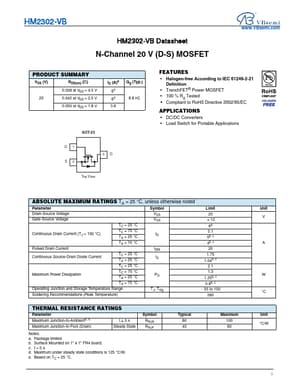

Preview of HM2302 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM2302
Manufacturer
VBsemi
File Size
241.43 KB
Datasheet
HM2302-VBsemi.pdf
Description
N-Channel MOSFET
