UF3C120040K4S - SiC Cascode

UnitedSiC

The UF3C120040K4S by UnitedSiC is a SiC Cascode. Below is the official datasheet preview.

📥 Download Datasheet

UF3C120040K4S SiC Cascode by UnitedSiC - Datasheet Preview — Official preview page of the **UF3C120040K4S** SiC Cascode datasheet (UnitedSiC).

Datasheet Details

Part number	UF3C120040K4S
Manufacturer	UnitedSiC
File Size	471.53 KB
Description	SiC Cascode
Datasheet	UF3C120040K4S-UnitedSiC.pdf

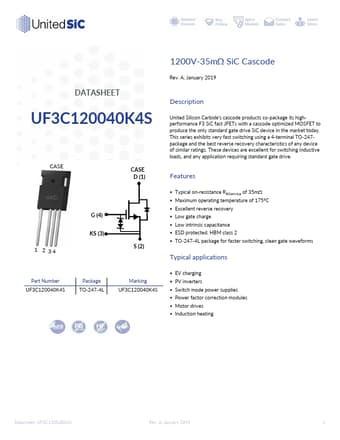

Additional preview pages of the UF3C120040K4S datasheet.

UF3C120040K4S Product details

Description

United Silicon Carbide's cascode products co-package its highperformance F3 SiC fast JFETs with a cascode optimized MOSFET to produce the only standard gate drive SiC device in the market today.

Features

1 2 34 G (4) KS (3) S (2) w Typical on-resistance RDS(on),typ of 35mW w Maximum operating temperature of 175°C w Excellent reverse recovery w Low gate charge w Low intrinsic capacitance w ESD protected, HBM class 2 w TO-247-4L package for faster switching, clean gate waveforms Typical.
