UF3C120150K4S - SiC Cascode JFET

ON Semiconductor

The UF3C120150K4S by ON Semiconductor is a SiC Cascode JFET. Below is the official datasheet preview.

📥 Download Datasheet

UF3C120150K4S SiC Cascode JFET by ON Semiconductor - Datasheet Preview — Official preview page of the **UF3C120150K4S** SiC Cascode JFET datasheet (ON Semiconductor).

Datasheet Details

Part number	UF3C120150K4S
Manufacturer	ON Semiconductor
File Size	440.51 KB
Description	SiC Cascode JFET
Datasheet	UF3C120150K4S-ONSemiconductor.pdf

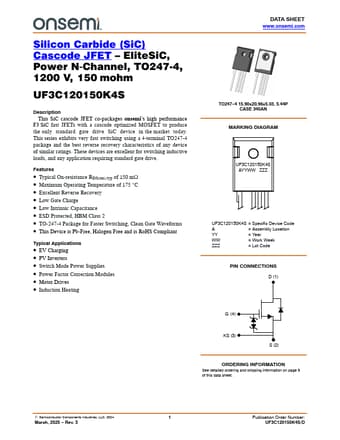

Additional preview pages of the UF3C120150K4S datasheet.

UF3C120150K4S Product details

Description

This SiC cascode JFET co-packages onsemi’s high performance F3 SiC fast JFETs with a cascode optimized MOSFET to produce the only standard gate drive SiC device in the market today.This series exhibits very fast switching using a 4-terminal TO247-4 package and the best reverse recovery characteristics of any device of similar ratings.These devices are excellent for switching inductive loads, and any application requiring standard gate drive.

Features

Typical On-resistance RDS(on),typ of 150 mW.
Maximum Operating Temperature of 175 °C.
Excellent Reverse Recovery.
Low Gate Charge.
Low Intrinsic Capacitance.
ESD Protected, HBM Class 2.
TO-247-4 Package for Faster Switching, Clean Gate Waveforms.
This Device is Pb-Free, Halogen Free and is RoHS Compliant Typical.
