UF3C065080K3S - SiC Cascode JFET

ON Semiconductor

The UF3C065080K3S by ON Semiconductor is a SiC Cascode JFET. Below is the official datasheet preview.

📥 Download Datasheet

UF3C065080K3S SiC Cascode JFET by ON Semiconductor - Datasheet Preview — Official preview page of the **UF3C065080K3S** SiC Cascode JFET datasheet (ON Semiconductor).

Datasheet Details

Part number	UF3C065080K3S
Manufacturer	ON Semiconductor
File Size	379.02 KB
Description	SiC Cascode JFET
Datasheet	UF3C065080K3S-ONSemiconductor.pdf

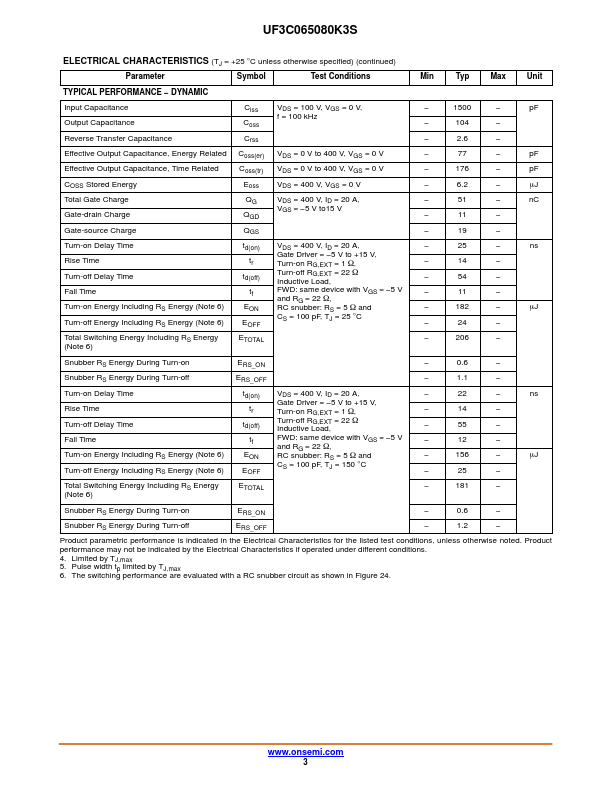

Additional preview pages of the UF3C065080K3S datasheet.

UF3C065080K3S Product details

Description

This SiC FET device is based on a unique ‘cascode’ circuit configuration, in which a normally-on SiC JFET is co-packaged with a Si MOSFET to produce a normally-off SiC FET device.The device’s standard gate-drive characteristics allows for a true “drop-in replacement” to Si IGBTs, Si FETs, SiC MOSFETs or Si superjunction devices.Available in the TO247-3 package, this device exhibits ultra-low gate charge and exceptional reverse recovery characteristics, making it ideal for switching inductive l

Features

Typical On-resistance RDS(on),typ of 80 mW.
Maximum Operating Temperature of 175 °C.
Excellent Reverse Recovery.
Low Gate Charge.
Low Intrinsic Capacitance.
ESD Protected, HBM Class 2.
Very Low Switching Losses (Required RC-snubber Loss Negligible under Typical Operating Conditions).
This Device is Pb-Free, Halogen Free and is RoHS Compliant Typical.
