UF3C065040B3 - 650V SiC Cascode JFET

onsemi

The UF3C065040B3 by onsemi is a 650V SiC Cascode JFET. Below is the official datasheet preview.

📥 Download Datasheet

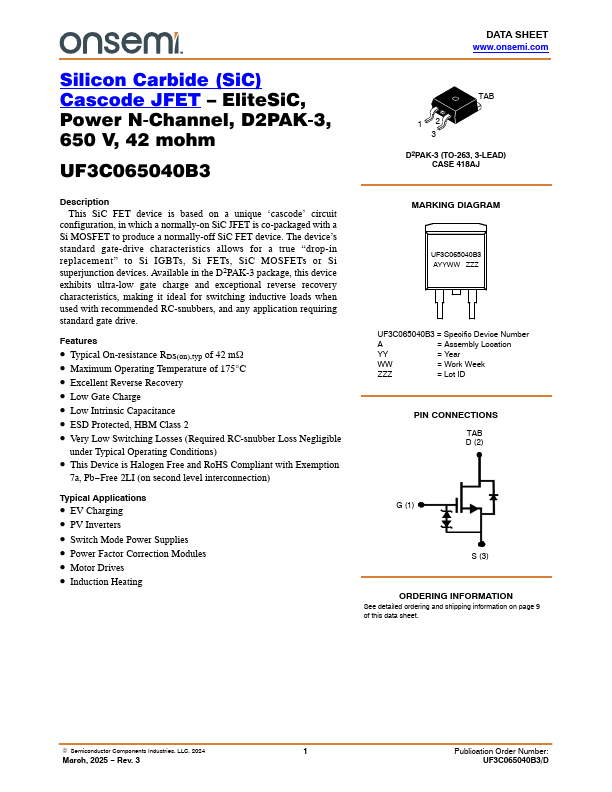

UF3C065040B3 650V SiC Cascode JFET by onsemi - Datasheet Preview — Official preview page of the **UF3C065040B3** 650V SiC Cascode JFET datasheet (onsemi).

Datasheet Details

Part number	UF3C065040B3
Manufacturer	onsemi
File Size	310.30 KB
Description	650V SiC Cascode JFET
Datasheet	UF3C065040B3-onsemi.pdf

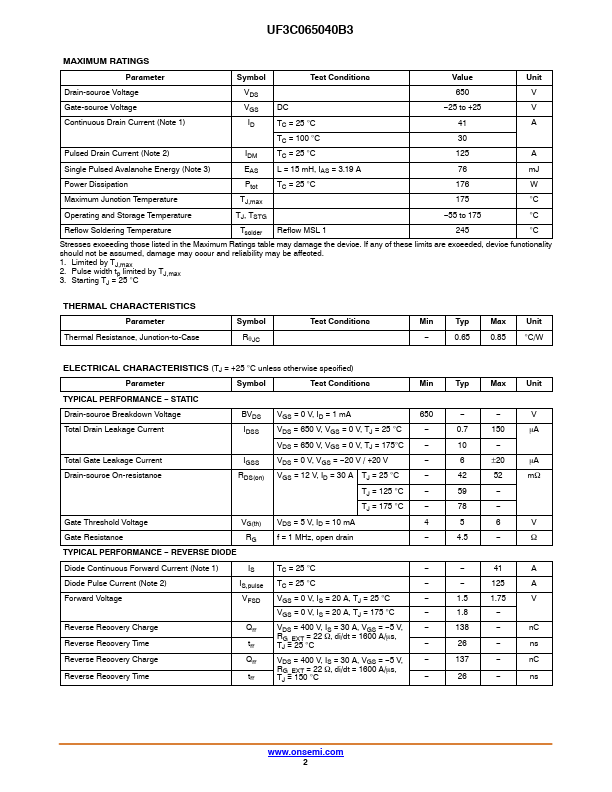

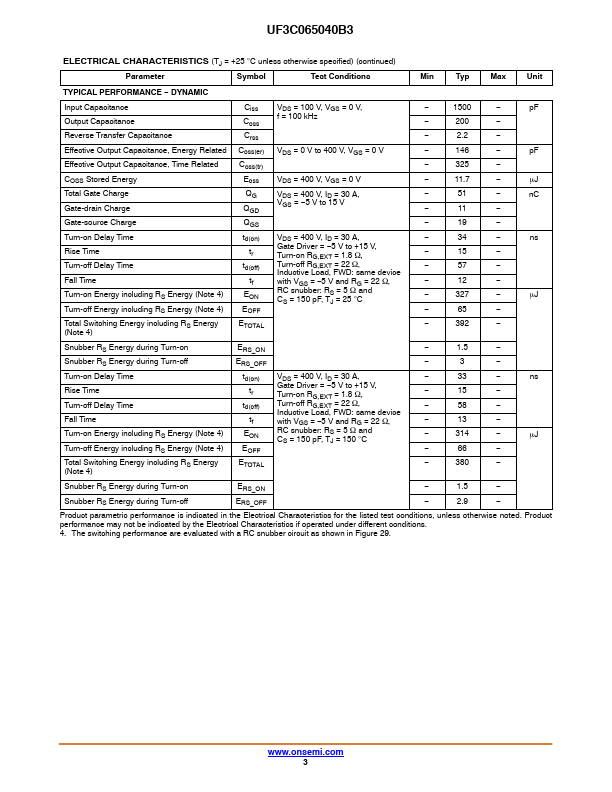

Additional preview pages of the UF3C065040B3 datasheet.

UF3C065040B3 Product details

Description

This SiC FET device is based on a unique ‘cascode’ circuit configuration, in which a normally-on SiC JFET is co-packaged with a Si MOSFET to produce a normally-off SiC FET device.The device’s standard gate-drive characteristics allows for a true “drop-in replacement” to Si IGBTs, Si FETs, SiC MOSFETs or Si superjunction devices.Available in the D2PAK-3 package, this device exhibits ultra-low gate charge and exceptional reverse recovery characteristics, making it ideal for switching inductive l

Features

Typical On-resistance RDS(on),typ of 42 mW.
Maximum Operating Temperature of 175°C.
Excellent Reverse Recovery.
Low Gate Charge.
Low Intrinsic Capacitance.
ESD Protected, HBM Class 2.
Very Low Switching Losses (Required RC-snubber Loss Negligible under Typical Operating Conditions).
This Device is Halogen Free and RoHS Compliant with Exemption 7a, Pb.
Free 2LI (on second level interconnection) Typical.
