The XCL223 by Torex is a Step-Down micro DC/DC Converter. Below is the official datasheet preview.

📥 Download Datasheet

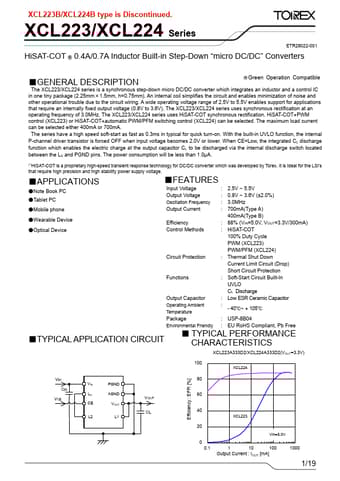

XCL223 Step-Down micro DC/DC Converter by Torex - Datasheet Preview — Official preview page of the **XCL223** Step-Down micro DC/DC Converter datasheet (Torex).

Datasheet Details

Part number	XCL223, XCL223-
Manufacturer	Torex
File Size	672.94 KB
Description	Step-Down micro DC/DC Converter
Datasheet	XCL223-
Note	This datasheet PDF includes multiple part numbers: XCL223, XCL223-. Please refer to the document for exact specifications by model.
Additional preview pages of the XCL223 datasheet.

XCL223 Product details

Description

☆Green Operation Compatible The XCL223/XCL224 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.25mm×1.5mm, h=0.75mm).An internal coil simplifies the circuit and enables minimization of noise and other operational trouble due to the circuit wiring.A wide operating voltage range of 2.5V to 5.5V enables support for applications that require an internally fixed output voltage (0.8V to 3.6V).The XCL223/XCL224 series us

Features

te Book PC.
Tablet PC Input Voltage Output Voltage Oscillation Frequency : 2.5V ~ 5.5V : 0.8V ~ 3.6V (±2.0%) : 3.0MHz.
Mobile phone Output Current : 700mA(Type A).
Wearable Device Efficiency 400mA(Type B) : 88% (VIN=5.0V, VOUT=3.3V/300mA).
Optical Device Control Methods : HiSAT-COT 100% Duty Cycle PWM (XCL223) PWM/PFM (XCL224) Circuit Protection : Thermal Shut Down Current Limit Circuit (Drop) Short Circuit Protection Functions : Soft-Start Circuit Built-In U.
