XCL220, XCL219 - 1.0A Inductor Built-in Step-Down micro DC/DC Converter

Torex Semiconductor

The XCL220 by Torex Semiconductor is a 1.0A Inductor Built-in Step-Down micro DC/DC Converter. Below is the official datasheet preview.

📥 Download Datasheet

XCL220 1.0A Inductor Built-in Step-Down micro DC/DC Converter by Torex Semiconductor - Datasheet Preview — Official preview page of the **XCL220** 1.0A Inductor Built-in Step-Down micro DC/DC Converter datasheet (Torex Semiconductor).

Datasheet Details

Part number	XCL220, XCL219
Manufacturer	Torex Semiconductor
File Size	0.96 MB
Description	1.0A Inductor Built-in Step-Down micro DC/DC Converter
Datasheet	XCL219-TorexSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: XCL220, XCL219. Please refer to the document for exact specifications by model.

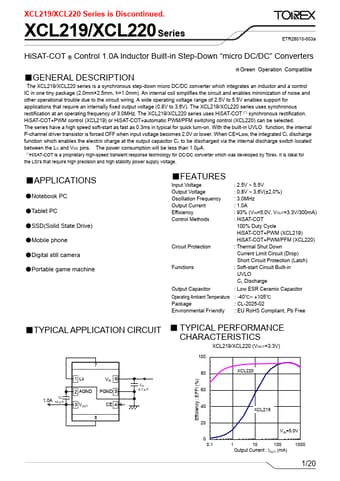

Additional preview pages of the XCL220 datasheet.

XCL220 Product details

Description

☆Green Operation Compatible The XCL219/XCL220 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.0mm×2.5mm, h=1.0mm).An internal coil simplifies the circuit and enables minimization of noise and other operational trouble due to the circuit wiring.A wide operating voltage range of 2.5V to 5.5V enables support for applications that require an internally fixed output voltage (0.8V to 3.6V).The XCL219/XCL220 series use

Features

oltage : 2.5V ~ 5.5V Output Voltage : 0.8V ~ 3.6V(±2.0%) Oscillation Frequency : 3.0MHz Output Current : 1.0A Efficiency Control Methods : 93% (VIN=5.0V, VOUT=3.3V/300mA) : HiSAT-COT 100% Duty Cycle HiSAT-COT+PWM (XCL219) HiSAT-COT+PWM/PFM (XCL220) Circuit Protection : Thermal Shut Down Current Limit Circuit (Drop) Short Circuit Protection (Latch) Functions : Soft-start Circuit Built-in UVLO CL Discharge Output Capacitor : Low ESR Ceramic Capacitor Operating Ambient Tempera.
