XCL222, XCL221 - 0.5A Inductor Built-in Step-Down Converters

Torex Semiconductor

The XCL222 by Torex Semiconductor is a 0.5A Inductor Built-in Step-Down Converters. Below is the official datasheet preview.

📥 Download Datasheet

XCL222 0.5A Inductor Built-in Step-Down Converters by Torex Semiconductor - Datasheet Preview — Official preview page of the **XCL222** 0.5A Inductor Built-in Step-Down Converters datasheet (Torex Semiconductor).

Datasheet Details

Part number	XCL222, XCL221
Manufacturer	Torex Semiconductor
File Size	1.10 MB
Description	0.5A Inductor Built-in Step-Down Converters
Datasheet	XCL221-TorexSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: XCL222, XCL221. Please refer to the document for exact specifications by model.

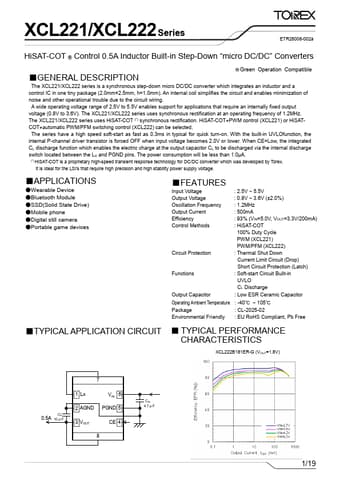

Additional preview pages of the XCL222 datasheet.

XCL222 Product details

Description

The XCL221/XCL222 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.0mm×2.5mm, h=1.0mm).

Features

oltage : 2.5V ~ 5.5V Output Voltage : 0.8V ~ 3.6V (±2.0%) Oscillation Frequency : 1.2MHz Output Current : 500mA Efficiency Control Methods : 93% (VIN=5.0V, VOUT=3.3V/200mA) : HiSAT-COT 100% Duty Cycle PWM (XCL221) PWM/PFM (XCL222) Circuit Protection : Thermal Shut Down Current Limit Circuit (Drop) Short Circuit Protection (Latch) Functions : Soft-start Circuit Built-in UVLO CL Discharge Output Capacitor : Low ESR Ceramic Capacitor Operating Ambient Temperature : -40℃ ~ 105℃.
