XCL212, XCL211 - 2.0A Inductor Built-in Step-Down micro DC/DC Converters

Torex

The XCL212 by Torex is a 2.0A Inductor Built-in Step-Down micro DC/DC Converters. Below is the official datasheet preview.

📥 Download Datasheet

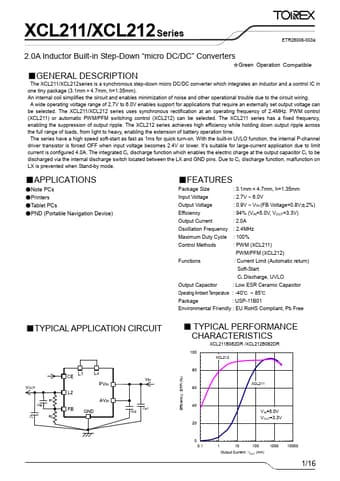

XCL212 2.0A Inductor Built-in Step-Down micro DC/DC Converters by Torex - Datasheet Preview — Official preview page of the **XCL212** 2.0A Inductor Built-in Step-Down micro DC/DC Converters datasheet (Torex).

Datasheet Details

Part number	XCL212, XCL211
Manufacturer	Torex
File Size	1.68 MB
Description	2.0A Inductor Built-in Step-Down micro DC/DC Converters
Datasheet	XCL211-Torex.pdf
Note	This datasheet PDF includes multiple part numbers: XCL212, XCL211. Please refer to the document for exact specifications by model.
Additional preview pages of the XCL212 datasheet.

XCL212 Product details

Description

The XCL211/XCL212series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (3.1mm×4.7mm, h=1.35mm).

Features

Size : 3.1mm×4.7mm, h=1.35mm Input Voltage : 2.7V ~ 6.0V Output Voltage : 0.9V ~ VIN (FB Voltage=0.8V±2%) Efficiency : 94% (VIN=5.0V, VOUT=3.3V) Output Current : 2.0A Oscillation Frequency : 2.4MHz Maximum Duty Cycle : 100% Control Methods : PWM (XCL211) PWM/PFM (XCL212) Functions : Current Limit (Automatic return) Soft-Start CL Discharge, UVLO Output Capacitor : Low ESR Ceramic Capacitor Operating Ambient Temperature : -40℃ ~ 85℃ Package : USP-11B01 Environmental Friend.
