XCL213 - 1.5A Inductor Built-in Step-Down Converters

Torex Semiconductor

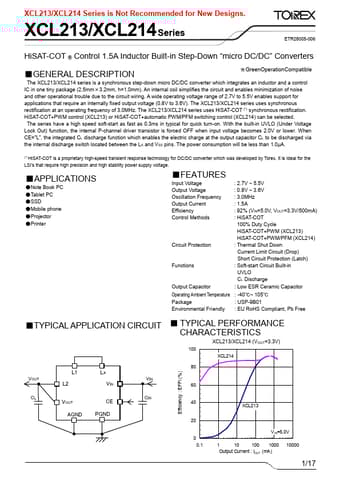

The XCL213 by Torex Semiconductor is a 1.5A Inductor Built-in Step-Down Converters. Below is the official datasheet preview.

📥 Download Datasheet

XCL213 1.5A Inductor Built-in Step-Down Converters by Torex Semiconductor - Datasheet Preview — Official preview page of the **XCL213** 1.5A Inductor Built-in Step-Down Converters datasheet (Torex Semiconductor).

Datasheet Details

Part number	XCL213
Manufacturer	Torex Semiconductor
File Size	1.01 MB
Description	1.5A Inductor Built-in Step-Down Converters
Datasheet	XCL213-TorexSemiconductor.pdf
Additional preview pages of the XCL213 datasheet.

XCL213 Product details

Description

☆GreenOperationCompatible The XCL213/XCL214 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.5mm×3.2mm, h=1.0mm).An internal coil simplifies the circuit and enables minimization of noise and other operational trouble due to the circuit wiring.A wide operating voltage range of 2.7V to 5.5V enables support for applications that require an internally fixed output voltage (0.8V to 3.6V).The XCL213/XCL214 series uses

Features

e Output Voltage Oscillation Frequency Output Current Efficiency Control Methods Circuit Protection Functions Output Capacitor : 2.7V ~ 5.5V : 0.8V ~ 3.6V : 3.0MHz : 1.5A : 92% (VIN=5.0V, VOUT=3.3V/500mA) : HiSAT-COT 100% Duty Cycle HiSAT-COT+PWM (XCL213) HiSAT-COT+PWM/PFM (XCL214) : Thermal Shut Down Current Limit Circuit (Drop) Short Circuit Protection (Latch) : Soft-start Circuit Built-in UVLO CL Discharge : Low ESR Ceramic Capacitor Operating Ambient Temperature : -40℃~ 105℃ Package : US.
