XCL201 - Inductor Built-in Step-Down micro DC/DC Converters

Torex Semiconductor

The XCL201 by Torex Semiconductor is a Inductor Built-in Step-Down micro DC/DC Converters. Below is the official datasheet preview.

📥 Download Datasheet

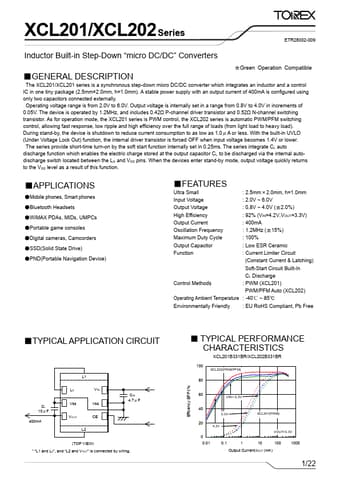

XCL201 Inductor Built-in Step-Down micro DC/DC Converters by Torex Semiconductor - Datasheet Preview — Official preview page of the **XCL201** Inductor Built-in Step-Down micro DC/DC Converters datasheet (Torex Semiconductor).

Datasheet Details

Part number	XCL201
Manufacturer	Torex Semiconductor
File Size	1.06 MB
Description	Inductor Built-in Step-Down micro DC/DC Converters
Datasheet	XCL201-TorexSemiconductor.pdf
Additional preview pages of the XCL201 datasheet.

XCL201 Product details

Description

The XCL201/XCL201 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.5mm×2.0mm, h=1.0mm).

Features

all : 2.5mm×2.0mm, h=1.0mm Input Voltage : 2.0V ~ 6.0V Output Voltage : 0.8V ~ 4.0V (±2.0%) High Efficiency : 92% (VIN=4.2V,VOUT=3.3V) Output Current : 400mA Oscillation Frequency : 1.2MHz (±15%) Maximum Duty Cycle : 100% Output Capacitor : Low ESR Ceramic Function : Current Limiter Circuit (Constant Current & Latching) Soft-Start Circuit Built-In CL Discharge Control Methods : PWM (XCL201) PWM/PFM Auto (XCL202) Operating Ambient Temperature : -40℃ ~ 85℃ Environmentally.
