XCL208 - 400mA Inductor Built-in Step-Down micro DC/DC Converters

Torex Semiconductor

The XCL208 by Torex Semiconductor is a 400mA Inductor Built-in Step-Down micro DC/DC Converters. Below is the official datasheet preview.

📥 Download Datasheet

XCL208 400mA Inductor Built-in Step-Down micro DC/DC Converters by Torex Semiconductor - Datasheet Preview — Official preview page of the **XCL208** 400mA Inductor Built-in Step-Down micro DC/DC Converters datasheet (Torex Semiconductor).

Datasheet Details

Part number	XCL208
Manufacturer	Torex Semiconductor
File Size	1.44 MB
Description	400mA Inductor Built-in Step-Down micro DC/DC Converters
Datasheet	XCL208-TorexSemiconductor.pdf

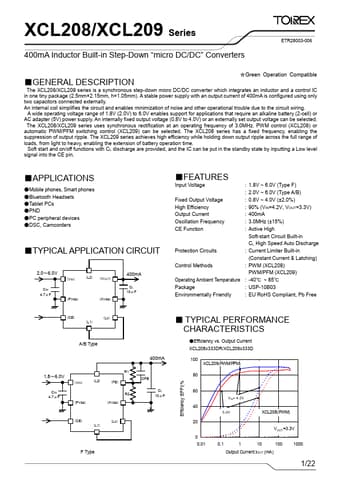

Additional preview pages of the XCL208 datasheet.

XCL208 Product details

Description

The XCL208/XCL209 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.5mm×2.15mm, h=1.05mm).

Features

age Fixed Output Voltage High Efficiency Output Current Oscillation Frequency CE Function Protection Circuits Control Methods Operating Ambient Temperature Package Environmentally Friendly : 1.8V ~ 6.0V (Type F) : 2.0V ~ 6.0V (Type A/B) : 0.8V ~ 4.0V (±2.0%) : 90% (VIN=4.2V, VOUT=3.3V) : 400mA : 3.0MHz (±15%) : Active High Soft-start Circuit Built-in CL High Speed Auto Discharge : Current Limiter Built-in (Constant Current & Latching) : PWM (XCL208) PWM/PFM (XCL209) : -40℃ ~ 85℃ : USP-10B03 : E.
