Features
• 600V Field Stop Trench Technology • High Speed Switching • Low Conduction Loss • Positive Temperature Coefficient • Easy Parallel Operation • RoHS Compliant • JEDEC Qualification
Applications
UPS, Welder, Inverter, Solar

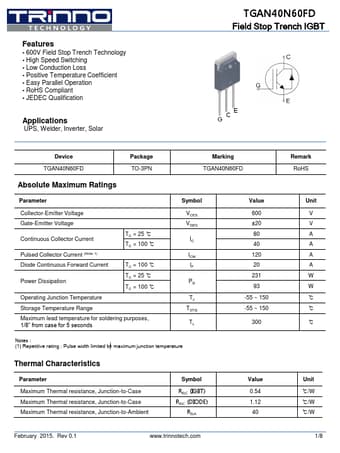

TGAN40N60FD
Field Stop Trench IGBT
E GC
Device TGAN40N60FD
Package TO-3PN
Marking TGAN40N60FD
Absolute Maximum Ratings
Parameter
Collector-Emitter Voltage
Gate-Emitter Voltage
Continuous Collector Current Pulsed Collector Current (Note 1)
TC = 25 ℃ TC = 100 ℃
Diode Continuous Forward Current Power Dissipation
TC = 100 ℃ TC = 25 ℃ TC = 100 ℃
Operating Junction Temperature
Storage Temperature Range
Maximum lead temperature for soldering purposes, 1/8” from case for 5 seconds
Symbol VCES VGES
IC
ICM IF
PD
TJ TSTG TL
Value
600 ±20 80 40 120 20 231 9
