TGA1045-EPU - Ku Band Power Amplifier

Datasheet Summary

Features

  • and Performance.
  • HFET Technology 12.5 -15.5 GHz Frequency Range > 3W Nominal Pout 24 dB Nominal Gain 9V @ 1.2A Bias Primary.

📥 Download Datasheet

Datasheet preview – TGA1045-EPU

Datasheet Details

Part number TGA1045-EPU
Manufacturer TriQuint Semiconductor
File Size 234.29 KB
Description Ku Band Power Amplifier
Datasheet download datasheet TGA1045-EPU Datasheet
Additional preview pages of the TGA1045-EPU datasheet.

📁 Similar Datasheet

  • TGA10A - Current Transducers (Topstek)
  • TGA11A - Current Transducers (Topstek)
  • TGA17A - Current Transducers (Topstek)
  • TGA18A - Current Transducers (Topstek)
  • TGA2227 - GaN Low Noise Amplifier (qorvo)
  • TGA2227-SM - GaN Low Noise Amplifier (Qorvo)
  • TGA2237-SM - 10W GaN Power Amplifier (Qorvo)
  • TGA2238 - 60W GaN Power Amplifier (Qorvo)
  • TGA2239-CP - 50W GaN Power Amplifier (Qorvo)
  • TGA24A - Current Transducers (Topstek)
Other Datasheets by TriQuint Semiconductor

Full PDF Text Transcription

Click to expand full text

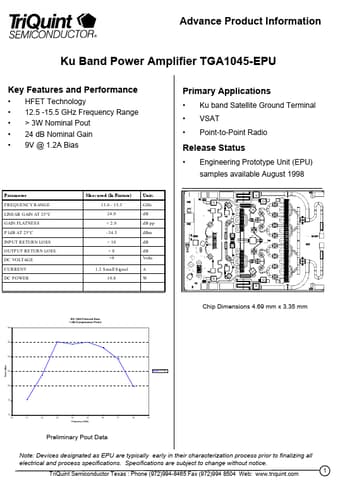

Advance Product Information Ku Band Power Amplifier TGA1045-EPU Key Features and Performance • • • • • HFET Technology 12.5 -15.5 GHz Frequency Range > 3W Nominal Pout 24 dB Nominal Gain 9V @ 1.2A Bias Primary Applications • • • Ku band Satellite Ground Terminal VSAT Point-to-Point Radio Release Status • Engineering Prototype Unit (EPU) samples available August 1998 Parame te r FREQUENCY RANGE LINEAR GAIN AT 25 °C GAIN FLATNESS P1dB AT 25 °C INP UT RETURN LOSS OUTP UT RETURN LOSS DC VOLTAGE CURRENT DC P OWER Me as ure d (In Fixture ) 13.0 - 15.5 24.0 < 2.0 ~34.5 > 10 >8 +9 1.2 S ma ll Signa l 10.8 Units GHz dB dB pp dBm dB dB Volts A W Chip Dimensions 4.69 mm x 3.
