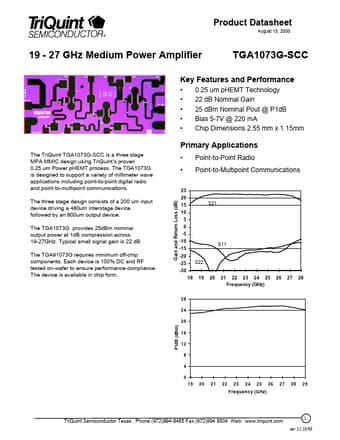

Product Datasheet
August 15, 2000
19 - 27 GHz Medium Power Amplifier
TGA1073G-SCC
Key Features and Performance
• • • • • 0.25 um pHEMT Technology 22 dB Nominal Gain 25 dBm Nominal Pout @ P1dB Bias 5-7V @ 220 mA Chip Dimensions 2.55 mm x 1.15mm
Primary Applications
The TriQuint TGA1073G-SCC is a three stage MPA MMIC design using TriQuint’s proven 0.25 um Power pHEMT process. The TGA1073G is designed to support a variety of millimeter wave applications including point-to-point digital radio and point-to-multipoint communications.
Gain and Return Loss (dB)
• •
25 20 15 10 5 0 -5 -10 -15 -20 -25 -30 18
Point-to-Point Radio Point-to-Multipoint Communications
The three stage design consists of a 200 um input device driving a 480um interstage device followed by an 800um output device.
TGA1073G-SCC Datasheet
