Advance Product Information
36 - 40 GHz Power Amplifier
• • • • • •
TGA1071-EPU
0.25um pHEMT Technology 36-40 GHz Frequency Range 22 dBm Nominal Pout @ P1dB 15 dB Nominal Gain 5V, 120 mA Bias Chip Dimensions 3.4mm x 2.1mm
Key Features and Performance
Primary Applications
• •
The TriQuint TGA1071-EPU is a two stage PA MMIC design using TriQuint’ s proven 0.25 um Power pHEMT process to support a variety of millimeter wave applications including point-to-point digital radio and point-to-multipoint systems. The two-stage design consists of two 300 um input devices driving a pair of 400 um output devices. The TGA1071 provides 22dBm of output power across 36-40 GHz with a typical small signal gain of 15dB. The TGA1071 requires minimum off-chip components.

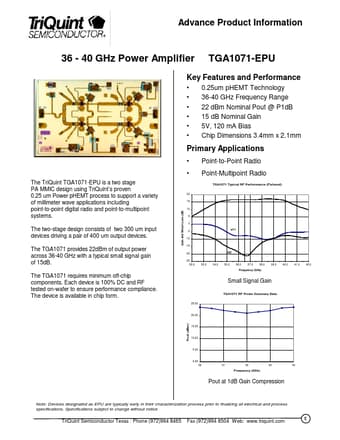

TGA1071-EPU Datasheet
