EM520 - AXIAL LEADED RECTIFIER DIODES

Product Overview

Sunmate

📥 Download Datasheet

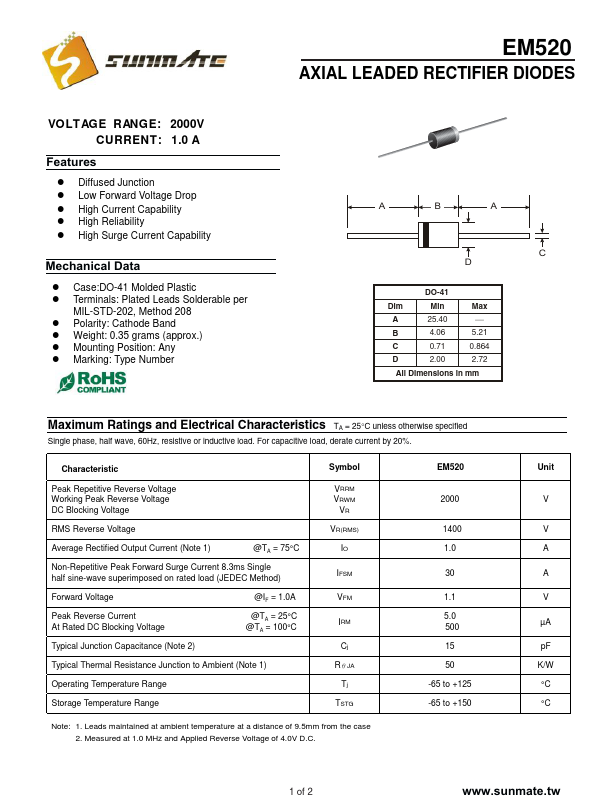

EM520 AXIAL LEADED RECTIFIER DIODES by Sunmate - Datasheet Preview — Datasheet preview – EM520

Datasheet Details

Part number	EM520
Manufacturer	Sunmate
File Size	249.25 KB
Description	AXIAL LEADED RECTIFIER DIODES
Datasheet	EM520 Datasheet

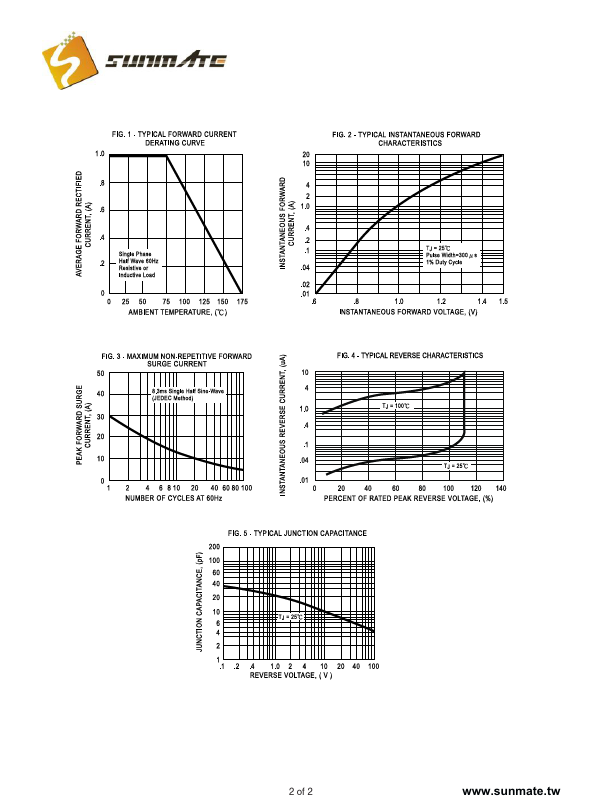

Additional preview pages of the EM520 datasheet.

Product details

Features

! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case:DO-41 Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.35 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number EM520 AXIAL LEADED.
