EM5201 - single channel load switch

Excelliance MOS

📥 Download Datasheet

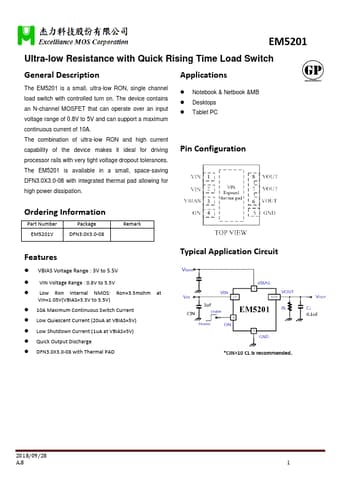

EM5201 Datasheet Preview — Preview of EM5201 PDF

Datasheet Details

Part number	EM5201
Manufacturer	Excelliance MOS
File Size	2.08 MB
Description	single channel load switch
Datasheet	EM5201-ExcellianceMOS.pdf

EM5201 Product details

Description

Applications The EM5201 is a small, ultra-low RON, single channel load switch with controlled turn on.The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8V to 5V and can support a maximum continuous current of 10A.The combination of ultra-low RON and high current capability of the device makes it ideal for driving processor rails with very tight voltage dropout tolerances.The EM5201 is available in a small, space-saving DFN3.0X3.0-08 with integrated th

Features

VBIAS Voltage Range : 3V to 5.5V.
VIN Voltage Range : 0.8V to 5.5V.
Low Ron Internal NMOS: Ron=3.5mohm at Vin=1.05V(VBIAS=3.3V to 5.5V).
10A Maximum Continuous Switch Current.
Low Quiescent Current (20uA at VBIAS=5V).
Low Shutdown Current (1uA at VBIAS=5V).
Quick Output Discharge.
DFN3.0X3.0-08 with Thermal PAD Typical.
