EM5202D - Ultra Low Ron Single Load Switch

Excelliance MOS

📥 Download Datasheet

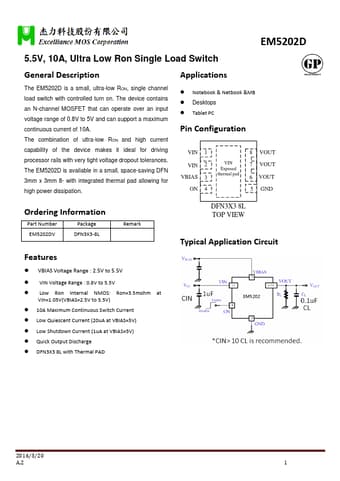

EM5202D Datasheet Preview — Preview of EM5202D PDF

Datasheet Details

Part number	EM5202D
Manufacturer	Excelliance MOS
File Size	1.65 MB
Description	Ultra Low Ron Single Load Switch
Datasheet	EM5202D-ExcellianceMOS.pdf

EM5202D Product details

Description

Applications The EM5202D is a small, ultra-low RON, single channel load switch with controlled turn on.The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8V to 5V and can support a maximum continuous current of 10A.The combination of ultra-low RON and high current capability of the device makes it ideal for driving processor rails with very tight voltage dropout tolerances.The EM5202D is available in a small, space-saving DFN 3mm x 3mm 8- with integrat

Features

VBIAS Voltage Range : 2.5V to 5.5V.
VIN Voltage Range : 0.8V to 5.5V.
Low Ron Internal NMOS: Ron=3.5mohm at Vin=1.05V(VBIAS=2.5V to 5.5V).
10A Maximum Continuous Switch Current.
Low Quiescent Current (20uA at VBIAS=5V).
Low Shutdown Current (1uA at VBIAS=5V).
Quick Output Discharge.
DFN3X3 8L with Thermal PAD DFN3X3 8L TOP VIEW Typical.
