EM5201A - Ultra-low Resistance

Excelliance MOS

📥 Download Datasheet

EM5201A Datasheet Preview — Preview of EM5201A PDF

Datasheet Details

Part number	EM5201A
Manufacturer	Excelliance MOS
File Size	2.08 MB
Description	Ultra-low Resistance
Datasheet	EM5201A-ExcellianceMOS.pdf

EM5201A Product details

Description

Applications The EM5201A is a small, ultra-low RON, single channel load switch with controlled turn on.The device contains an N-channel MOSFET that can operate over an input voltage range of 0.6V to 5V and can support a maximum continuous current of 8A.The combination of ultra-low RON and high current capability of the device makes it ideal for driving processor rails with very tight voltage dropout tolerances.The EM5201A is available in a small, space-saving DFN 33-08L with integrated ther

Features

VBIAS Voltage Range : 3V to 5.5V.
VIN Voltage Range : 0.8V to 5.5V.
Low Ron Internal NMOS: Ron=6.5mohm for 8A at Vin=1.05V(VBIAS=3V to 5.5V).
8A Continuous Current.
Low Quiescent Current (20uA at VBIAS=5V).
Low Shutdown Current (1uA at VBIAS=5V).
Quick Output Discharge.

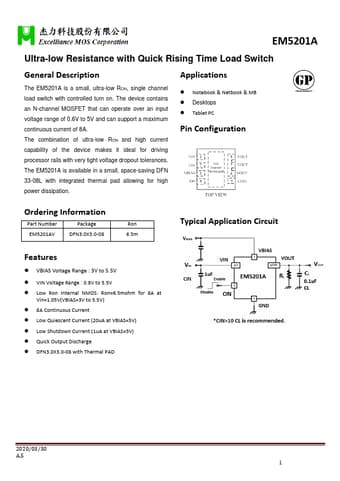

DFN3.0X3.0-08 with Thermal PAD 2020/03/30 A.5 1 Pin Assignment EM5201A Pin Name Pin No. Pin Function VIN VBIAS ON GND VOUT 1,2 3 4 5 6,7,8 Switch input. Place ceramic bypass capaci.
