EM518, EM513 AXIAL LEADED SILICON RECTIFIER DIODES

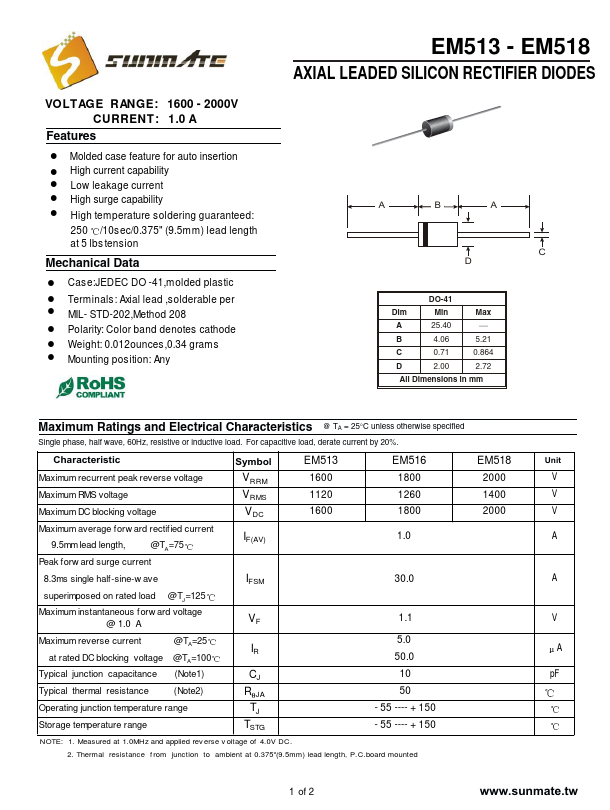

📥 Download Datasheet  Datasheet Preview Page 1

Description

VOLTAGE RANGE: 1600 - 2000V CURRENT: 1.0 A .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EM518, EM513. Please refer to the document for exact specifications by model.

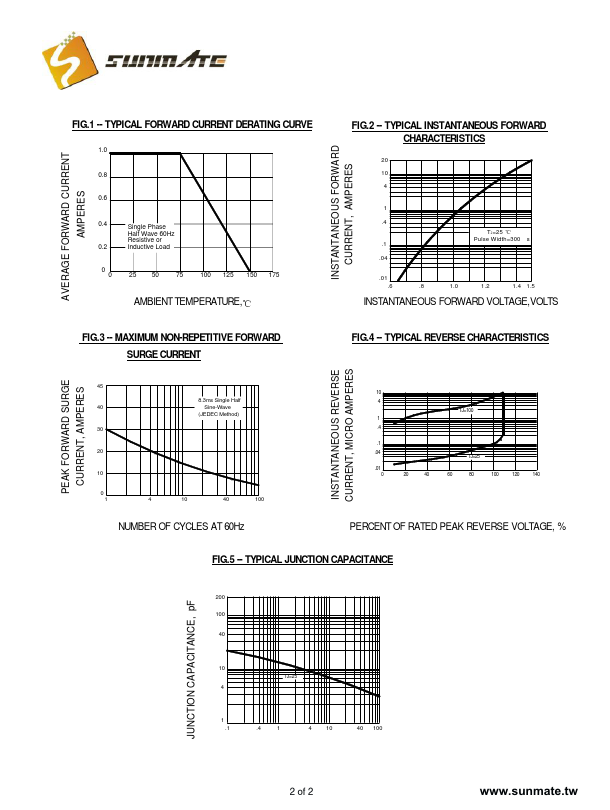

datasheet Preview Page 2

Datasheet Specifications

Part number
EM518, EM513
Manufacturer
Sunmate
File Size
123.39 KB
Datasheet
EM513-Sunmate.pdf
Description
AXIAL LEADED SILICON RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: EM518, EM513.
Please refer to the document for exact specifications by model.

Features

* ! Molded case feature for auto insertion ! High current capability ! Low leakage current ! High surge capability ! High temperature soldering guaranteed: 250 /10sec/0.375" (9.5mm) lead length at 5 lbs tension Mechanical Data ! Case:JEDEC DO -41,molded plastic ! Terminals: Axial lead ,solderable per
