STP607D - MOSFET

Datasheet Summary

Description

STP607D is the P-Channel logic enhancement mode power field effect transistor which is produced using high cell density, DMOS trench technology.

📥 Download Datasheet

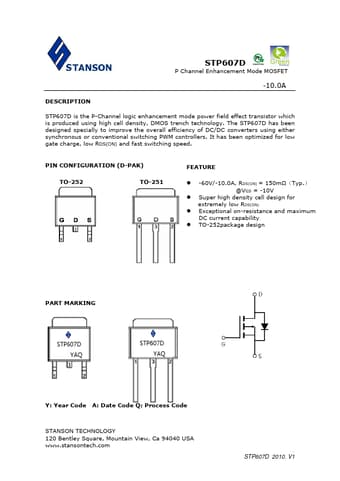

Datasheet preview – STP607D

Datasheet Details

Part number STP607D
Manufacturer Stanson Technology
File Size 1.99 MB
Description MOSFET
Datasheet download datasheet STP607D Datasheet
Additional preview pages of the STP607D datasheet.

📁 Similar Datasheet

  • STP607 - P-Channel Enhancement Mode MOSFET (STANSON)
  • STP605D - P-Channel Enhancement Mode MOSFET (STANSON)
  • STP60L60 - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop)
  • STP60L60A - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop)
  • STP60L60F - N-Channel Enhancement Mode Field Effect Transistor (SamHop)
  • STP60N043DM9 - N-CHANNEL Power MOSFET (STMicroelectronics)
  • STP60N05-14 - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STP60N05-16 - (STP60N05-16 / STP60N06-16) N-CHANNEL Power MOSFET (ST Microelectronics)
  • STP60N06 - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STP60N06-14 - N-CHANNEL Power MOSFET (ST Microelectronics)
Other Datasheets by Stanson Technology

Full PDF Text Transcription

Click to expand full text
STP607D P Channel Enhancement Mode MOSFET -10.0A DESCRIPTION STP607D is the P-Channel logic enhancement mode power field effect transistor which is produced using high cell density, DMOS trench technology. The STP607D has been designed specially to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS(ON) and fast switching speed. PIN CONFIGURATION (D-PAK) TO-252 TO-251 FEATURE -60V/-10.0A, RDS(ON) = 150mΩ（Typ.
