STP60N043DM9 - N-CHANNEL Power MOSFET

Datasheet Summary

Description

This N-channel Power MOSFET is based on the most innovative super-junction MDmesh DM9 technology, suitable for medium/high voltage MOSFETs featuring very low RDS(on) per area coupled with a fast-recovery diode.

Features

  • Order code VDS RDS(on) max. ID STP60N043DM9 600 V 43 mΩ 56 A.
  • Fast-recovery body diode.
  • Worldwide best RDS(on) per area among silicon-based fast recovery devices.
  • Low gate charge, input capacitance and resistance.
  • 100% avalanche tested.
  • Extremely high dv/dt ruggedness.

📥 Download Datasheet

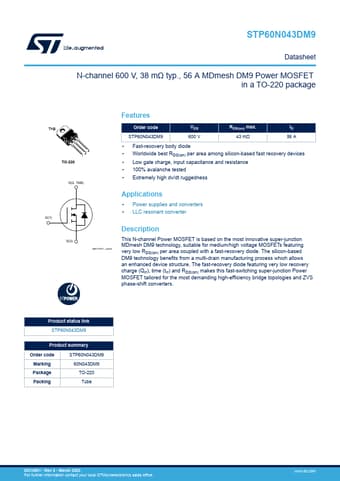

Datasheet preview – STP60N043DM9

Datasheet Details

Part number STP60N043DM9
Manufacturer STMicroelectronics
File Size 224.71 KB
Description N-CHANNEL Power MOSFET
Datasheet download datasheet STP60N043DM9 Datasheet
Additional preview pages of the STP60N043DM9 datasheet.
