STP60L60F - N-Channel Enhancement Mode Field Effect Transistor

Datasheet Summary

Features

  • Super high dense cell design for low R DS(ON). Rugged and reliable. TO-220F Package. D G D S G STF SERIES TO-220F S.

📥 Download Datasheet

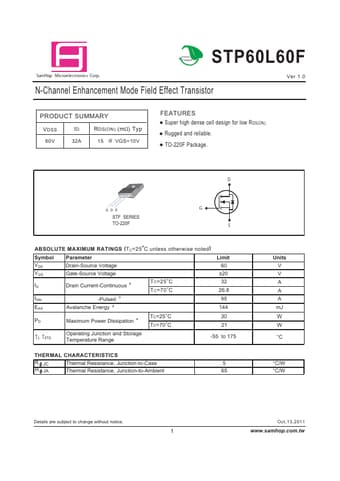

Datasheet preview – STP60L60F

Datasheet Details

Part number STP60L60F
Manufacturer SamHop
File Size 114.33 KB
Description N-Channel Enhancement Mode Field Effect Transistor
Datasheet download datasheet STP60L60F Datasheet
