STP601 - P-Channel Enhancement Mode MOSFET

Datasheet Summary

Description

STP601/STP601D is the P-Channel logic enhancement mode power field effect transistor which is produced using high cell density, DMOS trench technology.

📥 Download Datasheet

Datasheet preview – STP601

Datasheet Details

Part number STP601
Manufacturer Stanson Technology
File Size 390.99 KB
Description P-Channel Enhancement Mode MOSFET
Datasheet download datasheet STP601 Datasheet
Additional preview pages of the STP601 datasheet.

📁 Similar Datasheet

  • STP605D - P-Channel Enhancement Mode MOSFET (STANSON)
  • STP607 - P-Channel Enhancement Mode MOSFET (STANSON)
  • STP60L60 - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop)
  • STP60L60A - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop)
  • STP60L60F - N-Channel Enhancement Mode Field Effect Transistor (SamHop)
  • STP60N043DM9 - N-CHANNEL Power MOSFET (STMicroelectronics)
  • STP60N05-14 - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STP60N05-16 - (STP60N05-16 / STP60N06-16) N-CHANNEL Power MOSFET (ST Microelectronics)
  • STP60N06 - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STP60N06-14 - N-CHANNEL Power MOSFET (ST Microelectronics)
Other Datasheets by Stanson Technology

Full PDF Text Transcription

Click to expand full text

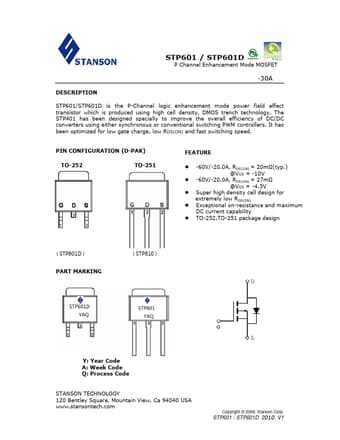

STP601 / STP601D P Channel Enhancement Mode MOSFET -30A DESCRIPTION STP601/STP601D is the P-Channel logic enhancement mode power field effect transistor which is produced using high cell density, DMOS trench technology. The STP401 has been designed specially to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS(ON) and fast switching speed. PIN CONFIGURATION (D-PAK) TO-252 TO-251 FEATURE -60V/-20.0A, RDS(ON) = 20mΩ(typ.) @VGS = -10V -60V/-20.0A, RDS(ON) = 27mΩ @VGS = -4.
